Technical data

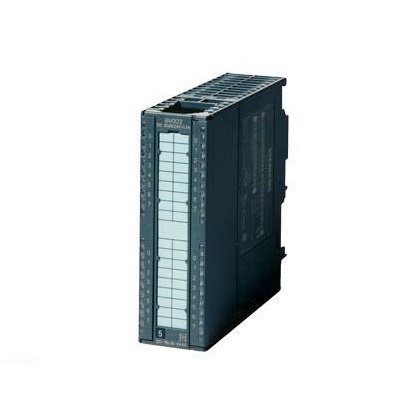

SIMATIC S7-300, Digital Input SM 321, Potential Isolation, 16 digital inputs, 48-125V DC, 1 20 pins
Supply voltage
Load voltage L+
● Rating (DC) 48 V
● Allowable range, lower limit (DC) 48V
● Allowable range, upper limit (DC) 125 V
Input current
From the backplane bus DC 5 V, Max 40 mA
Power loss
Power loss, typical value 4.3 W
Digital input
Number Number of input terminals 16
Input characteristics comply with IEC 61131, type 1 is
The number of inputs that can be controlled simultaneously
Horizontal mounting position
- The maximum value is 40 ℃ and the maximum value is 8 ℃
-- Up to 60 ℃, maximum 8; 6 to Ue 146 V
Vertical mounting position
- The maximum value is 40 ℃ and the maximum value is 8 ℃
Input voltage
● Input voltage type DC
● Rating (DC) 48V; 48 V DC to 125 V DC
● For signals "0" -146 V DC to 15 V DC
● For signal "1" 30V DC to 146V DC
Input current
● For signal "1", typical value 3.5mA
Input delay (when input voltage is rated)
For standard input
- Parameterized no
- When the value ranges from 0 to 1, the minimum value is 0.1 ms
- When the value ranges from 0 to 1, the maximum value is 3.5 ms
- When the value ranges from 1 to 0, the minimum value is 0.7 ms
- When the value ranges from 1 to 0, the maximum value is 3 ms
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
sensor
Connectable sensor
● Double wire sensor is
- The maximum allowable closed-circuit current (for a dual-wire sensor) is 1 mA
Alarm/diagnosis/status information
Alarm no
Diagnostic function No
alarm
● Check whether the alarm is generated
● Process alarm No
Diagnostic display LED
● Cumulative failure SF (red) No
● Digital input status display (green) Yes
Potential isolation
Digital input potential isolation
● Between channels no
● Between channels, group the number of points 8
● Between the channel and backplane bus is; Photoelectric coupler
insulation
Insulation test, using DC 1500 V
Connect technology/title
Required front plug 20 pins
dimension
Width 40mm
Height 125 mm
Depth 120 mm
weight
Weight, about 200 g
