Technical data

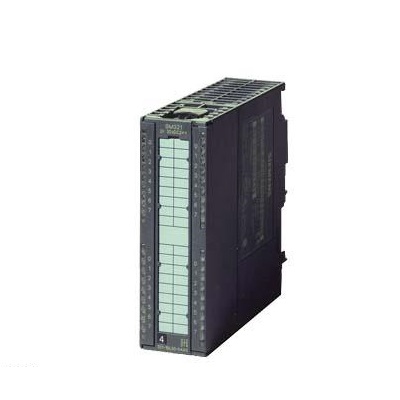

SIMATIC S7-300, Digital input SM 321, Potential Isolated, 32 DE, 120V AC, 1 40 stitches
Supply voltage
Load voltage L1
● Rating (AC) 120 V
Input current
From the backplane bus DC 5 V, maximum 16 mA
Power loss
Power loss, typical value 4 W
Digital input
Number Number of input terminals 32
Input characteristics comply with IEC 61131, type 2 is
The number of inputs that can be controlled simultaneously
Horizontal mounting position
- The maximum value is 40 ° C and the maximum value is 32 ° C
- The maximum value is 60 ° C and the maximum value is 24 ° C
Vertical mounting position
- The maximum value is 40 ° C and the maximum value is 32 ° C
Input voltage
● Input voltage type AC
● Rating (AC) 120 V; 47... 63 Hz
● For signal "0" 0 to 20V
● For signal "1" 74 to 132V
Input current
● For signal "1", the typical value is 21 mA
Input delay (when input voltage is rated)
For standard input
- Parameterized no
- When the value ranges from 0 to 1, the maximum value is 15 ms
- When the value ranges from 1 to 0, the maximum value is 25 ms
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
sensor
Connectable sensor
● Double wire sensor is
- The maximum allowable closed-circuit current (for a dual-wire sensor) is 4 mA
Alarm/diagnosis/status information
Alarm no
Diagnostic function No
alarm
● Check whether the alarm is generated
● Process alarm No
Diagnostic display LED
● Cumulative failure SF (red) No
● Digital input status display (green) Yes; Each channel
Potential isolation
Digital input potential isolation
● Between channels no
● Between channels, group the number of points 8
● Between the channel and backplane bus is; Photoelectric coupler
insulation
Insulation test, using DC 2500 V
Connect technology/title
Required front plug 40 pins
dimension
Width 40mm
Height 125 mm
Depth 120 mm
weight
Weight, about 300 g
