Technical data

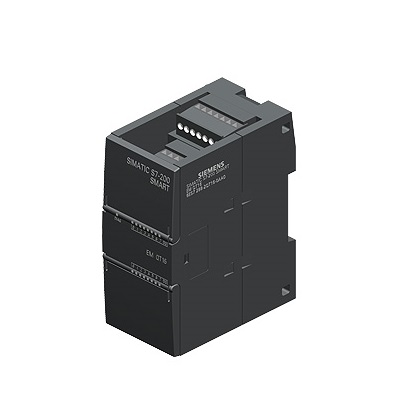

SIMATIC S7-200 SMART, Digital input/Output SM DR16, 8 digital input /8 digital output, 8 DI 24V DC, feed current/pull current, 8 DO, Relay 2A
General information
Product Type Mark SM DR16, DI 8x24 VDC, DQ 8x Relay / 2 A
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
Input current
Consumption current, typical value 80 mA; 24 V DC input power current
From the backplane bus DC 5 V, typical value 115 mA; 5 V DC from the CPU module
Digital input
Number of input terminals 8
● In the component 2
The parallel switch at the input is
Input characteristics comply with IEC 61131, type 1 is
The number of inputs that can be controlled simultaneously
Horizontal mounting position
- The maximum value is 50 ℃ and the maximum value is 8 ℃
Vertical mounting position
- The maximum value is 40 ℃ and the maximum value is 8 ℃
Input voltage
● Input voltage type DC
● Rating (DC) 24 V
● For signal "0" < 5 V DC
● For signal "1" +15 to +30 V
Input current
● For signal "0", maximum (allowed closed circuit current) 1 mA
● For signal "1", minimum value 2.5mA
● For signal "1", the maximum is 5 mA
● For signal "1", the typical value is 4 mA
Input delay (when input voltage is rated)
For standard input
- When the value ranges from 0 to 1, the maximum value is 200 µs
- When the value ranges from 1 to 0, the maximum value is 200 µs
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 300 m
Digital output
Number of output terminals 8
Short circuit protection No
Output current
● For signal "1" rating 2 A
The output delay when the resistance is loaded
● From "0" to "1", Max. 10 ms
● From "1" to "0", Max. 10 ms
The two outputs are in parallel
● Used for logical connection No
● Used to increase power No
● Used for redundancy control load No
Relay output terminal
● Number of relay output terminal 8
● Relay coil L+ (DC) power supply voltage 24 V
- Reverse polarity protection Yes
● The consumption current of relay (coil current of all relays), maximum 80 mA
The on-off capacity of the contact
- The maximum value when the inductor is loaded is 2 A
-- The maximum value of lighting load is 30 W; DC time 30 W, AC time 200 W
- Under resistance load, the maximum is 50 ℃, the maximum is 2 A
- Under resistance load, the maximum is 60 ℃, the maximum is 2 A
- The maximum value when the resistance is loaded is 2 A
- Continuous thermal current, maximum value 2 A
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 150 m
Alarm/diagnosis/status information
Diagnostic display LED
● For input side status is
● For output end status is
Potential isolation
Digital input potential isolation
● Between the channels is; Photoelectric coupler
Digital output potential isolation
● Between the channels is; Relay, dry contact
insulation
Insulation test, using input isolation 500 V AC/ min; Output isolation 1500 V AC/ min
EMV
Resistance to static discharge interference
● Resistance to static discharge interference in accordance with IEC 61000-4-2; ±4 kV contact discharge (in accordance with IEC 801-2/IEC 1000-4-2; ESD); ±8 kV air discharge (in accordance with IEC 801-2/IEC 1000-4-2; ESD)
-- The test voltage of air discharge is 8 kV
-- Test voltage of contact discharge is 4 kV
Anti-interference ability against high frequency electromagnetic field
● Anti-interference against high frequency rays, in line with IEC 61000-4-3
-- High-frequency radiation ranges from 80 to 1000 MHz, 10 V/m, 1.4 to 2.0 GHz, 3 V/m, 2.0 to 2.7 GHz, 1 V/m (87 MHz to 187 MHz, 174 MHz to 230 MHz and 470 MHz to 790 MHz range: 3V/m)
Resistance to interference in relation to wires
● The anti-jamming ability of the power supply wire conforms to IEC 61000-4-4. 2 kV in accordance with IEC 61000-4-4, pulse
● Anti-interference ability of signal wire, in line with IEC 61000-4-4 is; ±2 kV in accordance with IEC 61000-4-4, pulse
Anti-jamming capability against impulse voltage (surge)
● The anti-jamming ability of the power supply wire conforms to IEC 61000-4-5. With front protection element
● Asymmetric coupling
-- Test voltage on the power supply wire 2 kV
-- Test voltage of 2 kV on signal wire (greater than 30 m)
Anti-jamming ability against the amount of wire interference caused by high frequency field
● For high frequency feed anti-interference, in accordance with IEC 61000-4-6
● Anti-interference for high frequency rays, in line with IEC 61000-4-6 is; 10 V/m with 80 % amplitude modulation 1 kHz
-- 9 kHz... The test voltage is 10 V at 80% 1KHz amplitude modulation within 80 MHz range
Suppression of radio interference radiation according to EN 55 011
● Radio radiation interference Emission interference in accordance with EN 50081-2, tested in accordance with EN 55011, Class A, Group 1
● Limit grade A is suitable for industrial applications
Protection level and protection category
Protection level IP Address IP20
Standards, licenses, certificates
CE mark is
Environmental requirements
Relative air humidity
● No condensation operation at 25 °C, maximum 95%
dimension
Width 45 mm
Height 100 mm
Depth 81 mm
weight
Weight, about 201.9g
