Technical data

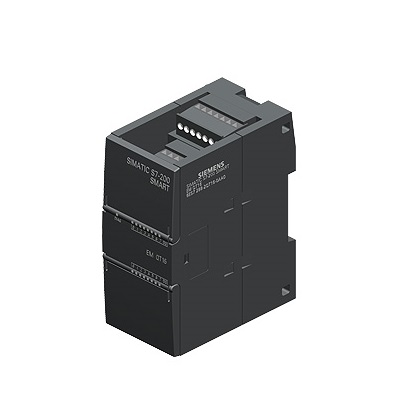

SIMATIC S7-200 SMART, Digital output EM DT16, 16 digital outputs, 24VDC, Transistor 0.75A
General information
Product type logo SM DT16, DQ 16x24VDC / 0.75A
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
Input current
From the backplane bus DC 5 V, typical value 135 mA
Digital input
Number Number of input terminals 0
Digital output
Number of output terminals 16
● In the component 4
M switch No
P switch is
Short circuit protection No
Control digit input is
Output on-off capability
● Maximum value of 0.75A when resistance is loaded
● The maximum value of lighting load is 5 W
Output voltage
● Rating (DC) 24 V
● Maximum 0.1V for signal "0"
● For signal "1", minimum DC 20 V
Output current
● Rating 0.75A for signal "1"
● For the allowable range of signal "1", the maximum value is 0.75A
● For signal "1" allowable range 0 to 40 ℃, maximum 750 mA
● For the residual current of signal "0", maximum 10 µA
The output delay when the resistance is loaded
● From "0" to "1", Max. 50 µs
● From "1" to "0", up to 200 µs
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 150 m
Alarm/diagnosis/status information
Diagnostic display LED
● For output end status is
Potential isolation
Digital output potential isolation
● Between the channels is; Photoelectric coupler
insulation
Insulation test, using 500V AC for 1 minute
EMV
Anti-jamming ability against the amount of wire interference caused by high frequency field
● For high frequency feed anti-interference, in line with IEC 61000-4-6 is; 10 V, 150 kHz to 80 MHz (according to IEC 61000-4-6)
● Anti-interference for high frequency rays, in line with IEC 61000-4-6 is; 10 V/m with 80 % amplitude modulation 1 kHz
-- 9 kHz... The test voltage is 10 V at 80% 1KHz amplitude modulation within 80 MHz range
Suppression of radio interference radiation according to EN 55 011
● Radio radiation interference Emission interference in accordance with EN 50081-2, tested in accordance with EN 55011, Class A, Group 1
● Limit grade A is suitable for industrial applications; EN 61000-6-4, Emission interference: Applications in industrial applications.
Protection level and protection category
Protection level IP Address IP20
Standards, licenses, certificates
The CE mark is; CE Marking/EU conformance Declaration
Environmental requirements
In the open
● Maximum drop 0.3m
Operating ambient temperature
● Minimum value 0 °C
● Maximum 55 °C
● Horizontal installation, minimum value 0 °C
● Horizontal installation, maximum 55 °C
● Vertical installation, minimum value 0 °C
● Vertical installation, maximum 45 °C
Ambient temperature during transportation/storage
● Minimum value -40 °C
● Maximum 70 °C
Relative air humidity
● No condensation operation at 25 °C, maximum 95%
dimension
Width 45 mm
Height 100 mm
Depth 81 mm
weight
Weight, about 186 g
