Technical data

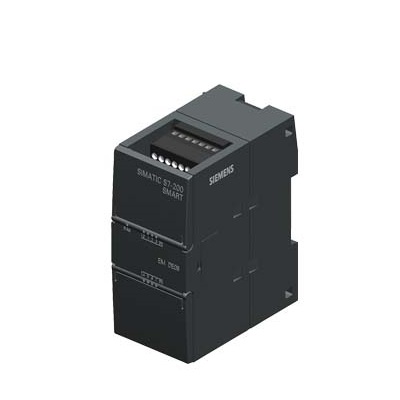

SIMATIC S7-200 SMART, Digital output SM DT08, 8 DO, 24V DC, Transistor 0.75A
General information
Product type logo SM DT08, DQ 8x24VDC / 0.75A
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
Input current
From the backplane bus DC 5 V, typical value 95 mA; 5 V DC from the CPU module
Digital input
Number Number of input terminals 0
Digital output
Number of output terminals 8
● In the component 2
M switch No
P switch is
Short circuit protection No
Control digit input is
Output on-off capability
● Maximum value of 0.75A when resistance is loaded
● The maximum value of lighting load is 5 W
Output voltage
● Rating (DC) 24 V
● Maximum 0.1V for signal "0"
● For signal "1", minimum DC 20 V
Output current
● Rating 0.75A for signal "1"
● For the allowable range of signal "1", the maximum value is 0.75A
● For signal "1" allowable range 0 to 40 ℃, maximum 750 mA
● For the residual current of signal "0", maximum 10 µA
The output delay when the resistance is loaded
● From "0" to "1", Max. 50 µs
● From "1" to "0", up to 200 µs
The two outputs are in parallel
● For logical connection
● Used to increase power is
● For redundancy control load is
Total current at output (per group)
All mounting positions
- The maximum value is 40 ℃ and the maximum value is 3 A
Horizontal mounting position
- Maximum 50 ℃, maximum 3 A
Vertical mounting position
- The maximum value is 40 ℃ and the maximum value is 3 A
All other mounting locations
- The maximum value is 40 ℃ and the maximum value is 3 A
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 150 m
Alarm/diagnosis/status information
Diagnostic display LED
● For output end status is
Potential isolation
Digital output potential isolation
● Between the channels is; Photoelectric coupler
insulation
Insulation test, using 500V AC for 1 minute
Protection level and protection category
Protection level IP Address IP20
Standards, licenses, certificates
CE mark is
dimension
Width 45 mm
Height 100 mm
Depth 81 mm
weight
Weight, about 147 g
Last modified: 2021/3/12
