Technical data

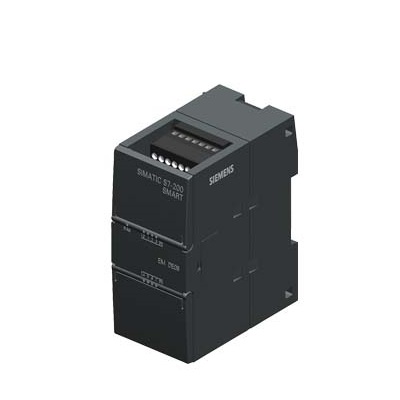

SIMATIC S7-200 SMART, digital output SM DR08, 8 DO, Relay 2A
General information
Product Type Logo SM DR08, DQ 8x Relay
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
Input current
Consumption current, typical value 80 mA; 24 V DC input power current
From the backplane bus DC 5 V, typical value 90 mA; 5 V DC from the CPU module
Digital input
Number Number of input terminals 0
Digital output
Number of output terminals 8
Short circuit protection No
The output delay when the resistance is loaded
● From "0" to "1", Max. 10 ms
● From "1" to "0", Max. 10 ms
Relay output terminal
● Number of relay output terminal 8
● Relay coil L+ (DC) power supply voltage 24 V
- Reverse polarity protection Yes
● The consumption current of relay (coil current of all relays), maximum 80 mA
The on-off capacity of the contact
- The maximum value when the inductor is loaded is 2 A
-- The maximum value of lighting load is 30 W; DC time 30 W, AC time 200 W
- Under resistance load, the maximum is 50 ℃, the maximum is 2 A
- The maximum value when the resistance is loaded is 2 A
- Continuous thermal current, maximum value 2 A
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 150 m
Alarm/diagnosis/status information
Diagnostic display LED
● For output end status is
Potential isolation
Digital output potential isolation
● Between the channels is; Relay, dry contact
insulation
Insulation test using 1500 V AC for 1 minute
Protection level and protection category
Protection level IP Address IP20
Standards, licenses, certificates
CE mark is
dimension
Width 45 mm
Height 100 mm
Depth 81 mm
weight
Weight, about 166.3g
