Technical data

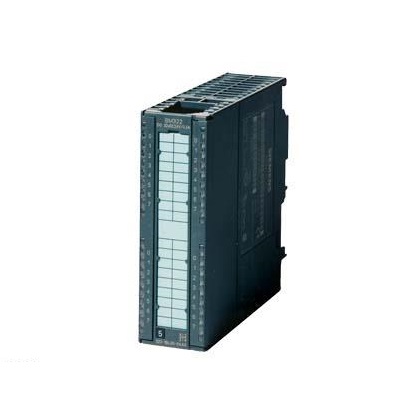

SIMATIC S7-300, Digital input SM 321, Potential isolated, 16 digital inputs, 24-48V AC/DC, comes with one set, 1 40 pins
Supply voltage
Load voltage L+
● Rating (DC) 24 V
● Allowable range, lower limit (DC) 24 V
● Allowable range, upper limit (DC) 48V
Load voltage L1
● Rating (AC) 24 V
● Allowable range, lower limit (AC) 24 V
● Allowable range, upper limit (AC) 48 V
Input current
From the backplane bus DC 5 V, Max 100 mA
Power loss
Power loss, typical value 1.5W; At 24 V; 2.8 W at 48 V
Digital input
Number Number of input terminals 16
Input characteristics comply with IEC 61131, type 1 is
The number of inputs that can be controlled simultaneously
Horizontal mounting position
- The maximum is 40 ℃ and the maximum is 16 ℃
- The maximum is 60 ℃ and the maximum is 16 ℃
Vertical mounting position
- The maximum is 40 ℃ and the maximum is 16 ℃
Input voltage
● Input voltage type AC/DC
● Rating (DC) 24 V; DC 24 or 48 V
● Rating (AC) 24 V; 24 V AC or 48 V AC (0... 63 Hz)
● For signal "0" -5V AC to 5V AC
● For signal "1" 14V AC to 60V AC
Input current
● For signal "0", the minimum is -1 mA
● For signal "0", maximum (allowed closed circuit current) 1 mA
● For signal "1", typical value 2.7mA
Input delay (when input voltage is rated)
For standard input
- Parameterized no
- When the value ranges from 0 to 1, the minimum value is 16 ms
- When the value ranges from 0 to 1, the maximum value is 16 ms
- When the value ranges from 1 to 0, the maximum value is 16 ms
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
sensor
Connectable sensor
● Double wire sensor is
- The maximum allowable closed-circuit current (for a dual-wire sensor) is 1 mA
Alarm/diagnosis/status information
Alarm no
Diagnostic function No
alarm
● Check whether the alarm is generated
● Process alarm No
Diagnostic display LED
● Cumulative failure SF (red) No
● Digital input status display (green) Yes
Potential isolation
Digital input potential isolation
● Between the channels yes
● Between channels, group the number of points 1
● Between the channel and backplane bus is; Photoelectric coupler
insulation
Insulation test, using AC 1500 V
Connect technology/title
Required front plug 40 pins
dimension
Width 40mm
Height 125 mm
Depth 120 mm
weight
Weight, about 260 g
