Technical data

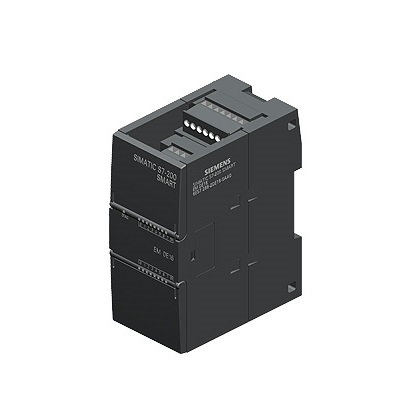

SIMATIC S7-200 SMART, analog input SM AR02 RTD, 2x AI RTD module
General information
Product Type logo SM AR02, AI RTD 2x16 bit
CiR configuration in action
Parameter assignment can be changed in RUN mode. No
Supply voltage
Voltage type of the power supply DC
Rating (DC) 24 V; -15 / +20 %
Input current
Consumption current, typical value 40 mA
From the backplane bus DC 5 V, typical value 80 mA
Power loss
Power loss, typical value 1.5 W
Analog input
Number of analog input terminal 2; Resistance thermometer
Voltage input The allowable input voltage (damage limit), Max. 30 V
The technical unit of temperature measurement, adjustable is; Celsius/Fahrenheit
Input range
● Voltage no
● Current No
● Thermocouple No
● Resistance thermometer is; Resistance sensor: Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10, Cu50, Cu 100, LG-Ni1000
● Resistance is; 48 Ω,150 Ω, 300 Ω, 600 Ω, 3000 Ω,
Input range (rating), resistance thermometer
● Cu 10 is
- Input resistance (Cu 10) 10 ohms
● Ni 100 is yes
- Input resistance (Ni 100) 100 Ω
● Ni 1000 is yes
- Input resistance (Ni 1000) 1000 Ω
● LG-Ni 1000 Yes
- Input resistance (LG-Ni 1000) 1000 Ω
● Ni 120 is
- Input resistance (Ni 120) 120 Ω
● Ni 200 is yes
- Input resistance (Ni 200) 200 Ω
● Ni 500 is yes
- Input resistance (Ni 500) 500 ohms
● Pt 100 is
- Input resistance (Pt 100) 100 Ω
● Pt 1000 is
- Input resistance (Pt 1000) 1000 Ω
● Pt 200 is
- Input resistance (Pt 200) 200 Ω
● Pt 500 is
- Input resistance (Pt 500) 500 Ω
Input range (rating), resistance
● 0 to 48 ohms yes
● 0 to 150 ohms is
● 0 to 300 ohms is
● 0 to 600 ohms yes
● 0 to 3000 ohms is
Analog output
The number of analog outputs is 0
Input analog value composition
Measuring principle Sigma Delta
Integration and conversion time/resolution per channel
● Resolution with overmodulation (bits including symbols), up to 15 bits; 150, 300, 600 and 3000 ohms; Otherwise 15 bits + VZ
● Parameterizable integration time is; 10/16.67/20/100 ms
● For interference frequency f1 (unit Hz), interference voltage suppression 10/50/60/400 Hz
Measurement filtering
● Parameterizable is; There are four levels using digital filtering
● Grade: None; 1x
● Level: weak Yes; 4x
● Grade: medium is; 16x
● Level: strong is; 32x
Protection level and protection category
Protection level IP Address IP20
Standards, licenses, certificates
CE mark is
dimension
Width 45 mm
Height 100 mm
Depth 81 mm
weight
Weight, about 148.7g
