Technical data

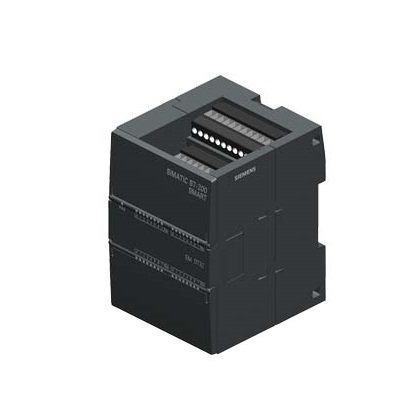

SIMATIC S7-200 SMART, Digital input/output SM DT32, 16DI/16DO, 16DI 24V DC, perfusion current/pull current, 16DO, transistor 0.75A
General information
Product Type Logo SM DT32, DI 16x24 VDC, DQ 16x24 VDC/ 0.75A
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
Input current
From the backplane bus DC 5 V, typical value 170 mA; 5 V DC from the CPU module
Digital input
Number Number of input terminals 16
● In the component 2
The parallel switch at the input is
Input characteristics comply with IEC 61131, type 1 is
The number of inputs that can be controlled simultaneously
Horizontal mounting position
- The maximum is 50 ℃, and the maximum is 16 ℃
Vertical mounting position
- The maximum is 40 ℃ and the maximum is 16 ℃
Input voltage
● Input voltage type DC
● Rating (DC) 24 V
● For signal "0" < 5 V DC
● For signal "1" +15 to +30 V
Input current
● For signal "0", maximum (allowed closed circuit current) 1 mA
● For signal "1", minimum value 2.5mA
● For signal "1", the maximum is 5 mA
● For signal "1", the typical value is 4 mA
Input delay (when input voltage is rated)
For standard input
- When the value ranges from 0 to 1, the maximum value is 200 µs
- When the value ranges from 1 to 0, the maximum value is 200 µs
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 300 m
Digital output
Number of output terminals 16
● In the component 3
M switch No
P switch is
Short circuit protection No
Output on-off capability
● Maximum value of 0.75A when resistance is loaded
● The maximum value of lighting load is 5 W
Output voltage
● Rating (DC) 24 V
● Maximum 0.1V for signal "0"
● For signal "1", minimum value is 20 V
● For signal "1", the maximum value is 28.8V; The maximum value is consistent with the input source L+
Output current
● Rating 0.75A for signal "1"
The output delay when the resistance is loaded
● From "0" to "1", Max. 50 µs
● From "1" to "0", up to 200 µs
The two outputs are in parallel
● For logical connection is; Only the same group output
● Used to increase power is; Possible (same group output only)
● For redundancy control load is; Only the same group output
Total current at output (per group)
All mounting positions
-- Up to 40 ℃, maximum 6 A; For A group of 8 points, the current is 6 A; For a group of 4 points, the current is 3A
Horizontal mounting position
-- Up to 50 ℃, maximum 6 A; For A group of 8 points, the current is 6 A; For a group of 4 points, the current is 3A
Vertical mounting position
-- Up to 40 ℃, maximum 6 A; For A group of 8 points, the current is 6 A; For a group of 4 points, the current is 3A
All other mounting locations
-- Up to 40 ℃, maximum 6 A; For A group of 8 points, the current is 6 A; For a group of 4 points, the current is 3A
Alarm/diagnosis/status information
Diagnostic display LED
● For input side status is
● For output end status is
Potential isolation
Digital input potential isolation
● Between the channels is; Photoelectric coupler
Digital output potential isolation
● Between the channels is; Photoelectric coupler
insulation
Insulation test, using 500V AC for 1 minute
EMV
Resistance to static discharge interference
● Resistance to static discharge interference in accordance with IEC 61000-4-2; ±4 kV contact discharge (in accordance with IEC 801-2/IEC 1000-4-2; ESD); ±8 kV air discharge (in accordance with IEC 801-2/IEC 1000-4-2; ESD)
-- The test voltage of air discharge is 8 kV
-- Test voltage of contact discharge is 4 kV
Anti-interference ability against high frequency electromagnetic field
● Anti-interference against high frequency rays, in line with IEC 61000-4-3
-- High-frequency radiation ranges from 80 to 1000 MHz, 10 V/m, 1.4 to 2.0 GHz, 3 V/m, 2.0 to 2.7 GHz, 1 V/m (87 MHz to 187 MHz, 174 MHz to 230 MHz and 470 MHz to 790 MHz range: 3V/m)
Resistance to interference in relation to wires
● The anti-jamming ability of the power supply wire conforms to IEC 61000-4-4. 2 kV in accordance with IEC 61000-4-4, pulse
● Anti-interference ability of signal wire, in line with IEC 61000-4-4 is; ±2 kV in accordance with IEC 61000-4-4, pulse
Anti-jamming capability against impulse voltage (surge)
● The anti-jamming ability of the power supply wire conforms to IEC 61000-4-5. With front protection element
● Asymmetric coupling
-- Test voltage on the power supply wire 2 kV
-- Test voltage of 2 kV on signal wire (greater than 30 m)
Anti-jamming ability against the amount of wire interference caused by high frequency field
● For high frequency feed anti-interference, in accordance with IEC 61000-4-6
● Anti-interference for high frequency rays, in line with IEC 61000-4-6 is; 10 V/m with 80 % amplitude modulation 1 kHz
-- 9 kHz... The test voltage is 10 V at 80% 1KHz amplitude modulation within 80 MHz range
Suppression of radio interference radiation according to EN 55 011
● Radio radiation interference Emission interference in accordance with EN 50081-2, tested in accordance with EN 55011, Class A, Group 1
● Limit grade A is suitable for industrial applications
Protection level and protection category
Protection level IP Address IP20
Standards, licenses, certificates
CE mark is
dimension
Width 70 mm
Height 100 mm
Depth 81 mm
weight
Weight, about 257.3g
