Technical data

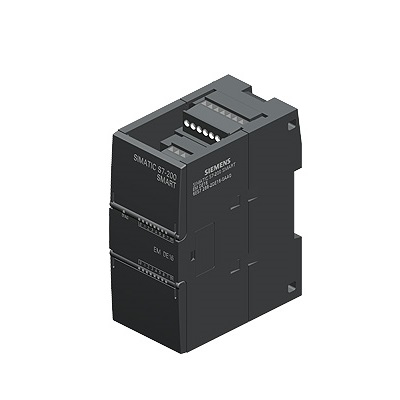

SIMATIC S7-200 SMART, Digital output EM DR16, 16 digital output terminals, Relay 2A
General information
Product Type Logo SM DR16, DQ 16x Relay / 2 A
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
Input current
Consumption current, typical value 110 mA
From the backplane bus DC 5 V, typical value 165 mA
Digital input
Number Number of input terminals 0
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 150 m
Digital output
Number of output terminals 16
● In the component 4
Short circuit protection No
Output on-off capability
● The maximum value of resistance load is 2 A
● The maximum value of lighting load is 30 W; DC time 30 W, AC time 200 W
Output current
● For signal "1" rating 2 A
● For the allowable range of signal "1", the maximum is 2 A
The output delay when the resistance is loaded
● From "0" to "1", Max. 10 ms
● From "1" to "0", Max. 10 ms
Total current at output (per group)
Horizontal mounting position
- Maximum temperature: 50 ℃, maximum value: 10 A
Relay output terminal
● The number of relay outputs is 16
● Relay coil L+ (DC) power supply voltage 24 V
- Reverse polarity protection Yes
● Relay consumption current (coil current of all relays), maximum 150 mA
The on-off capacity of the contact
- The maximum value when the inductor is loaded is 2 A
- The maximum value for lighting load is 30 W
- Under resistance load, the maximum is 50 ℃, the maximum is 2 A
- Under resistance load, the maximum is 60 ℃, the maximum is 2 A
- The maximum value when the resistance is loaded is 2 A
- Continuous thermal current, maximum value 2 A
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 150 m
Alarm/diagnosis/status information
Diagnostic display LED
● For output end status is
Potential isolation
Digital output potential isolation
● Between the channels is; Relay, dry contact
insulation
Insulation test, using input isolation 500 V AC/ min; Output isolation 1500 V AC/ min
EMV
Resistance to static discharge interference
● Resistance to static discharge interference in accordance with IEC 61000-4-2; ±4 kV contact discharge (in accordance with IEC 801-2/IEC 1000-4-2; ESD); ±8 kV air discharge (in accordance with IEC 801-2/IEC 1000-4-2; ESD)
-- The test voltage of air discharge is 8 kV
-- Test voltage of contact discharge is 4 kV
Anti-interference ability against high frequency electromagnetic field
● Anti-interference for high frequency rays, in line with IEC 61000-4-3; 10 V/m, 80 to 1000 MHz (in accordance with IEC 61000-4-3); 10 V/m, 900 MHz, 1.89 GHz, 50% ED (in accordance with IEC 61000-4-3)
-- High-frequency radiation ranges from 80 to 1000 MHz, 10 V/m, 1.4 to 2.0 GHz, 3 V/m, 2.0 to 2.7 GHz, 1 V/m (87 MHz to 187 MHz, 174 MHz to 230 MHz and 470 MHz to 790 MHz range: 3V/m)
Resistance to interference in relation to wires
● The anti-jamming ability of the power supply wire conforms to IEC 61000-4-4. ±2 kV in accordance with IEC 61000-4-4, pulse; Surge measurement with protective element
● Anti-interference ability of signal wire, in line with IEC 61000-4-4 is; ±2 kV (in accordance with IEC 801-4/IEC 1000-4-4; Pulse)
Anti-jamming capability against impulse voltage (surge)
● The anti-jamming ability of the power supply wire conforms to IEC 61000-4-5
● Asymmetric coupling ±2 kV in accordance with IEC 61000-4-5, asymmetric surge current
-- Test voltage on the power supply wire 2 kV
-- Test voltage of 2 kV on signal wire (greater than 30 m)
Anti-jamming ability against the amount of wire interference caused by high frequency field
● For high frequency feed anti-interference, in line with IEC 61000-4-6 is; 10 V, 150 kHz to 80 MHz (according to IEC 61000-4-6)
● Anti-interference for high frequency rays, in line with IEC 61000-4-6 is; 10 V/m with 80 % amplitude modulation 1 kHz
-- 9 kHz... The test voltage is 10 V at 80% 1KHz amplitude modulation within 80 MHz range
Suppression of radio interference radiation according to EN 55 011
● Radio radiation interference Emission interference in accordance with EN 50081-2, tested in accordance with EN 55011, Class A, Group 1
● Limit grade A is suitable for industrial applications; EN 61000-6-4, Emission interference: Applications in industrial applications.
Protection level and protection category
Protection level IP Address IP20
Standards, licenses, certificates
The CE mark is; CE Marking/EU conformance Declaration
Environmental requirements
In the open
● Maximum drop 0.3m
Operating ambient temperature
● Minimum value 0 °C
● Maximum 55 °C
● Horizontal installation, minimum value 0 °C
● Horizontal installation, maximum 55 °C
● Vertical installation, minimum value 0 °C
● Vertical installation, maximum 45 °C
Ambient temperature during transportation/storage
● Minimum value -40 °C
● Maximum 70 °C
Relative air humidity
● No condensation operation at 25 °C, maximum 95%
dimension
Width 45 mm
Height 100 mm
Depth 81 mm
weight
Weight, about 220 g
