Technical data

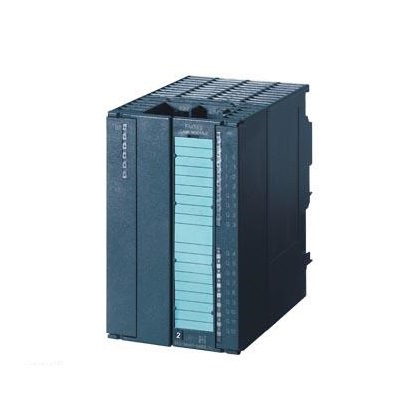

SIMATIC S7-300, CAM control, FM 352, electronics included project group status package on CD
Supply voltage
Rating (DC) 24 V
Input current
Voltage from load L+ (no load), Max 200 mA
From the backplane bus DC 5 V, Max 100 mA
Sensor power supply
5 V sensor power supply
● 5V is
● Output current, maximum 300 mA
● Wire length, maximum 32 m
24 V sensor power supply
● 24 V is
● Output current, maximum 300 mA
● Wire length, maximum 100 m
Power loss
Power loss, typical value 8.1W
Digital input
Number of input terminals 4
Function reference switch, floating actual value recording/length measurement, brake release, release track output number 3
Input voltage
● Rating (DC) 24 V
● For signal "0" -30 to +5 V
● For signal "1" +11 to +30V
Input current
● For signal "0", maximum (allowed closed circuit current) 2 mA
● For signal "1", typical value 9 mA
Digital output
Number of output terminals 13
Functional CAM trajectory
Short circuit protection is
Output voltage
● Rating (DC) 24 V
● For signal "1", minimum value UP-0.8V
Output current
● For signal "1" allowable range of 0 to 60 ℃, minimum value 5 mA; Up maximum time
● For the signal "1" allowable range of 0 to 60 ℃, the maximum 600 mA; Up maximum time
● For the residual current of signal "0", the maximum is 0.5mA
