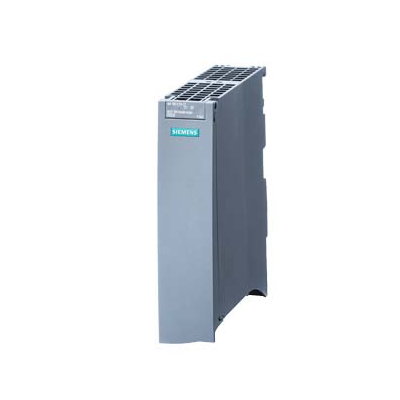

SIMATIC ET 200MP. PROFINET I/O Device Interface module IM 155-5 PN HF,
For ET 200MP electronic module; Up to 12 I/O modules without PS; Up to a maximum of 30 I/O modules with additional PS; Built-in 2-port switch; RJ45 shared equipment; MRP; IRT >=0.25ms; Beat synchronization firmware update; I&M0... 3. Start by priority, S2 redundancy; Shared device with 4 controllers suitable for running with active backplane bus (firmware V4.4 onwards)
Product function
● I&M data is; I&M0 to I&M3
● During the operation of the replacement module (hot swap) yes; Connects to the active backplane bus
● Clock synchronization mode Yes
packaged
● STEP 7 TIA port, configurable/integrated, since version V16, with HSP 308
● STEP 7 Configurable/integrated, since version V5.5 SP3 / -
● PROFINET version GSD version/GSD revision above v2.3 / -
Configuration control
Through valid data No
Through the data set is
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 19.2 V
The upper limit (DC) is 28.8V
Reverse polarity protection is
Short circuit protection is
The power supply and voltage break are bonded
● Blackout/blackout crossover time 5 ms
Input current
Consumption current (rated) 0.2A
Consumption current, maximum 1.2 A
Open current, Max. 9 A
I squared t 0.09 A squared times s
power
The feed power on the backplane bus is 14 W
The power output from the backplane bus is 2.3 W
