Technical data

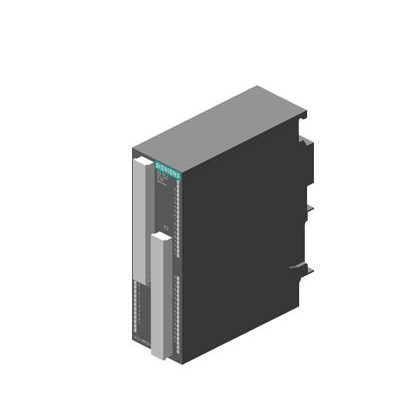

SIMATIC S7-300 digital output SM 322, potential isolation is divided into groups, 16 each, 64 digital output, 24V DC, 0.3A M write total current 2A/ group, 8A/ module terminal block 6ES7392-1.N00-0AA0 and Cable 6ES7392-4... 0-0AA0 3 pieces
Supply voltage
Load voltage L+
● Rating (DC) 24 V
● Allowable range, lower limit (DC) 20.4V
● Allowable range, upper limit (DC) 28.8V
Input current
Voltage from load L+ (no load), maximum 75 mA
From the backplane bus DC 5 V, Max 100 mA
Power loss
Power loss, typical value 6 W
Digital output
Number of digital output terminals 64
Short circuit protection is; electron
Inductive shut-off voltage limit M+ (45 V)
Control digit input is
Output on-off capability
● The maximum value of lighting load is 5 W
Load resistance range
● Lower limit 80 Ω
● Maximum 10 kΩ
Output voltage
● For signal "1", minimum M + (0.5V)
Output current
● 0.3A rating for signal "1"
● For the allowable range of signal "1", the minimum value is 2.4 mA
● For the allowable range of signal "1", the maximum value is 0.36A
The output delay when the resistance is loaded
● From "0" to "1", up to 450 µs
● From "1" to "0", up to 450 µs
The two outputs are in parallel
● Used to increase power No
● For redundancy control load is
Switching frequency
● The maximum value of resistance under load is 100 Hz
● The maximum value of inductive load is 0.5Hz
● The maximum value of lighting load is 10 Hz
Total current at output (per group)
Horizontal mounting position
- The maximum value is 40 ℃ and the maximum value is 1.6 A
- The maximum value is 60 ° C and the maximum value is 1.2 A
Vertical mounting position
- The maximum value is 40 ℃ and the maximum value is 1.6 A
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
Alarm/diagnosis/status information
Alarm no
Diagnostic function No
alarm
● Check whether the alarm is generated
diagnosis
● Diagnostic information can be read or not
● Disconnect No
● Short circuit No
● The fuse is blown
● Load voltage missing No
Diagnostic display LED
● Rated load voltage PWR (Green) No
● Insurance OK FSG (green) No
● Cumulative failure SF (red) No
● Digital output status display (green) Yes
● Channel fault F (red) No
Potential isolation
Digital output potential isolation
● Between channels no
● Between channels, group the number of points 16
● Between the channel and backplane bus is; Photoelectric coupler
insulation
Insulation test, using DC 500 V
Connect technology/title
Required front plug cable: 6ES7392-4Bxx0-0AA0 Terminal block: 6ES7392-1xN00-0AA0
dimension
Width 40mm
Height 125 mm
Depth 112 mm
weight
Weight, about 230 g
