Technical data

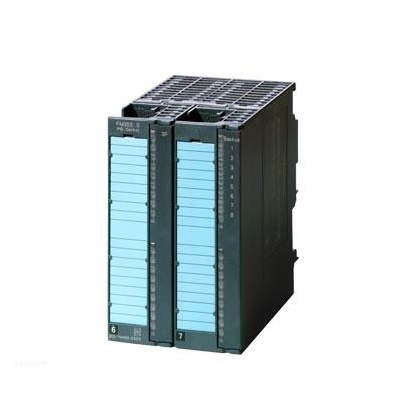

SIMATIC S7-300, FM 355-2 C for temperature stepper motor/servo motor, 4-channel, continuous, 4 analog input +8 digital input +4 analog output includes multilingual project group state package, manual and starter guide (German, en, it) saved on CD ROM
Supply voltage
Load voltage L+
● Rating (DC) 24 V
● Allowable range, lower limit (DC) 20.4V
● Allowable range, upper limit (DC) 28.8V
Input current
Voltage from load L+ (no load), maximum 310 mA; Typical value is 260 mA
From the backplane bus DC 5 V, maximum 75 mA; Typical value is 50 mA
Power loss
Power loss, typical value 6.5 W
Power loss, maximum 7.8W
Digital input
Number of input terminals 8
Input characteristics comply with IEC 61131, type 2 is
Input voltage
● Rating (DC) 24 V
● For signal "0" -3 to +5V
● For signal "1" 13 to 30V
Input current
● For signal "1", the typical value is 7 mA
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
Analog input
The number of analog inputs is 4
Voltage input The allowable input voltage (damage limit), Max. 20 V
Current input Allowed input current (damage limit), Max. 40 mA
Input range
● Voltage is
● Current is
● Thermocouple is
● Resistance thermometer Yes
Input range (rating), voltage
● 0 to +10 V is
- Input resistance (0 to 10 V) 100 kΩ
● -1.75V to + 11.75V Yes
- Input resistance (-1.75 V to +11.75 V) 100 kΩ
Input range (rating), current
● 0 to 20 mA Yes
- Input resistance (0 to 20 mA) 50 Ω
● 0 to 23.5 mA Yes
- Input resistance (0 to 23.5 mA) 50 Ω
● -3.5 mA to +23.5 mA Yes
- Input resistance (-3.5 mA to +23.5 mA) 50 Ω
● 4 mA to 20 mA Yes
- Input resistance (4 mA to 20 mA) 50 Ω
Input range (rating), thermocouple
● Type B is
- Input resistance (Type B) 10 MΩ
● Type E is
- Input resistance (Type E) 10 MΩ
● Type J is
- Input resistance (Type J) 10 MΩ
● Type K is
- Input resistance (Type K) 10 MΩ
● Type R is
- Input resistance (Type R) 10 MΩ
● Type S is
- Input resistance (Type S) 10 MΩ
Input range (rating), resistance thermometer
● Pt 100 is
- Input resistance (Pt 100) 10 MΩ
Thermocouple (TC)
Temperature compensation
- Internal temperature compensation Yes
- What is the external temperature compensation using Pt100
Characteristic linearization
● Parameterizable yes
- For thermocouple types B, E, J, K, R, S
-- Resistance thermometer Pt100 (standard)
Conductor length
● Shielding, maximum 200 m; 50 m for 80 mV and thermocouple
Analog output
The number of analog outputs is 4
Voltage output, short circuit protection is
Voltage output, short circuit current, Max. 25 mA
Current output, no load voltage, maximum 18 V
Output range, voltage
● 0 to 10 V is
● -10 V to +10 V Yes
Output range, current
● 0 to 20 mA Yes
● 4 mA to 20 mA Yes
Actuator connection
● For two wire interface voltage output is
● For the two-wire interface current output is
Load resistance (in rated output range)
● Minimum voltage output 1 kΩ
● Capacitance load at the voltage output, maximum 1 µF
● The maximum value of current output is 500 Ω
● Inductive load at current output, maximum 1 mH
Conductor length
● Shielding, maximum 200 m; 50 m for 80 mV and thermocouple
Input analog value composition
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 14 bits
Composition of analog values at the output end
Starting time
● 0.1ms for resistance load
● For capacitive load 3.3ms
● For inductive load 0.5ms
sensor
Signal sensor connection
● For voltage measurement is
● For the current measurement as a four-wire system transmitter
Connectable sensor
● Double wire sensor is
- The maximum allowable closed-circuit current (for a dual-wire sensor) is 1.5 mA
Error/accuracy
Operating error limits throughout the temperature range
● Voltage, related to the input range, (+/-) 0.6%; ±0.6 to ±0.7 %
● Current, related to the input range, (+/-) 0.6 %; ±0.6 to ±0.7 %
● Thermal resistance, depending on the input range, (+/-) 0.6 %; ±0.6 to ±0.7 %
● Voltage, related to output range, (+/-) 0.5 %
● Current, related to output range, (+/-) 0.6 %
Basic error limit (operating error limit at 25 °C)
● Voltage, related to input range, (+/-) 0.04%; ±0.04 to ±0.5 %
● Current, related to input range, (+/-) 0.04%; ±0.04 to ±0.5 %
● Thermal resistance, dependent on input range, (+/-) 0.04%; ±0.04 to ±0.5 %
● Voltage, related to output range, (+/-) 0.4 %
● Current, related to output range, (+/-) 0.5 %
Alarm/diagnosis/status information
The accessible alternative values are; parameterizable
Integrated function
Counter no
Control technique
● The number of regulators is 4
Potential isolation
Regulator potential isolation
● Between channels no
● Between the channel and backplane bus is; Photoelectric coupler
insulation
Insulation test, using DC 500 V
Connect technology/title
Required front plug 2x 20 pins
dimension
Width 80 mm
Height 125 mm
Depth 120 mm
weight
Weight, about 470 g
