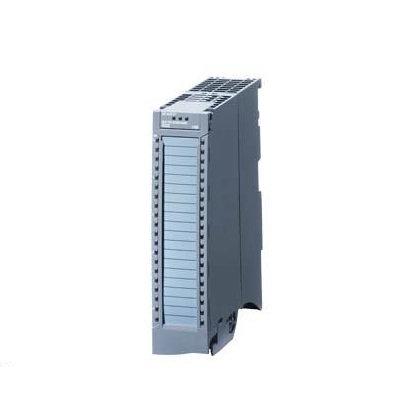

Siemens PLC 6ES7531-7NF10-0AB0 S7-1500 high speed 35mm module

Technical data

SIMATIC S7-1500, analog input module analog input 8xU/I high speed type, 16-bit resolution, accuracy 0.3% 8 channels, divided into groups, each group of 8, common mode voltage 10V; Diagnosis; Process alarm 8-channel oversampling at 0.0625ms; The scope of supply includes feed elements, shielding brackets and shielding terminals: front connectors (screw type terminals or in-line) ordered separately

General information

Product type label

Hardware Function Status FS01 or later

The firmware version is V2.1.0

● Updatable firmware is

Product function

● I&M data is; I&M0 to I&M3

● Clock synchronization mode Yes

● Start by priority yes

● Variable measuring range No

● Variable measurement value No

● Measuring range adjustment No

packaged

● STEP 7 TIA port, configurable/integrated, since version V14 / -

● STEP 7 Configurable/integrated, since version V5.5 SP3 / -

● PROFIBUS version GSD Edition/GSD revision V1.0 / V5.1

● PROFINET version GSD version/GSD revision above v2.3 / -

Operating mode

● Oversampling yes

● MSI is

CiR configuration in action

Parameter assignment can be changed in RUN mode

Can be calibrated in RUN mode Yes

Supply voltage

Rating (DC) 24 V

Allowable range, lower limit (DC) 19.2 V

The upper limit (DC) is 28.8V

Reverse polarity protection is

Input current

Consumption current, maximum 240 mA; 24 V DC power supply

Sensor power supply

24 V sensor power supply

● Short circuit protection is

● Output current, maximum 20 mA; Each channel had a maximum of 47 mA and a duration of < 10 s

power

The power output from the backplane bus is 1.15W

Power loss

Power loss, typical value 3.4 W

Analog input

The number of analog inputs is 8

● Current measurement 8

● Voltage measurement 8

Voltage input Allowed input voltage (damage limit), Max. 28.8V

Current input Allowed input current (damage limit), Max. 40 mA

Input range (rating), voltage

● 0 to +5 V No

● 0 to +10 V No

● 1 V to 5 V Yes

- Input resistance (1 V to 5 V) 50 kΩ

● -10 V to +10 V Yes

- Input resistance (-10 V to +10 V) 100 kΩ

● -2.5V to + 2.5V No

● -25 mV to +25 mV No

● -250 mV to +250 mV No

● -5 V to +5 V Yes

- Input resistance (-5 V to +5 V) 50 kΩ

● -50 mV to +50 mV No

● -500 mV to +500 mV No

● -80 mV to +80 mV No

Input range (rating), current

● 0 to 20 mA Yes

-- Input resistance (0 to 20 mA) 41 Ω; Plus about 42Ohm for overvoltage protection via PTC

● -20 mA to +20 mA Yes

- Input resistance (-20 mA to +20 mA) 41 Ω; Plus about 42Ohm for overvoltage protection via PTC

● 4 mA to 20 mA Yes

-- Input resistance (4 mA to 20 mA) 41 Ω; Plus about 42Ohm for overvoltage protection via PTC

Input range (rating), thermocouple

● Type B No

● Type C No

● Type E No

● Type J No

● Type K No

● Type L No

● Type N No

● Type R No

● Type S No

● Type T No

● The type TXK/TXK(L) matches GOST. No

Input range (rating), resistance thermometer

● Cu 10 No

● Conforms to GOST's Cu 10 No

● Cu 50 No

● Conforms to GOST's Cu 50 no

● Cu 100 No

● Cu 100 compliant with GOST No

● Ni 10 No

● Ni 10 in conformity with GOST No

● Ni 100 No

● Comply with GOST Ni 100 No

● Ni 1000 No

● Comply with GOST Ni 1000 No

● LG-Ni 1000 No

● Ni 120 No

● Ni 120 in accordance with GOST No

● Ni 200 No

● Comply with GOST Ni 200 No

● Ni 500 No

● Comply with GOST Ni 500 No

● Pt 10 No

● Pt 10 that complies with GOST No

● Pt 50 No

● Pt 50 in accordance with GOST No

● Pt 100 No

● Pt 100 compliant with GOST No

● Pt 1000 No

● Comply with GOST Pt 1000 No

● Pt 200 No

● Pt 200 compliant with GOST No

● Pt 500 No

● Pt 500 compliant with GOST No

Input range (rating), resistance

● 0 to 150 ohms No

● 0 to 300 ohms no

● 0 to 600 ohms No

● 0 to 3000 ohms No

● 0 to 6000 ohms No

● PTC No

Conductor length

● Shielding, maximum 800 m

Input analog value composition

Integration and conversion time/resolution per channel

● Resolution (bits including symbols) with overmodulation, up to 16 bits

● The basic execution time of the component (releasing all channels) is 62.5µs; It is independent of the number of active channels

Measurement filtering

● Parameterizable yes

● Grade: No

● Level: Weak Yes

● Level: Medium Yes

● Level: Strong Yes

sensor

Signal sensor connection

● For voltage measurement is

● For the current measurement as a two-wire system transmitter

- Dual-wire measurement of the inverter load, maximum 820 Ω

● For the current measurement as a four-wire system transmitter

● For the use of two wire system interface resistance measurement no

● For the use of three wire system interface resistance measurement no

● For the use of four wire system interface resistance measurement no

Error/accuracy

Linear error (related to input range), (+/-) 0.02 %

Temperature error (related to input range), (+/-) 0.005% /K

The maximum value of crosstalk between input terminals is -60 dB

Repetition accuracy (dependent on input range) at starting vibration at 25 °C, (+/-) 0.02%

Operating error limits throughout the temperature range

● Voltage, related to input range, (+/-) 0.3 %

● Current, related to the input range, (+/-) 0.3 %

Basic error limit (operating error limit at 25 °C)

● Voltage, related to input range, (+/-) 0.2 %

● Current, related to input range, (+/-) 0.2 %

Fault voltage suppression f = n x (f1 +/- 1 %), f1 = interference frequency

● Parallel voltage, maximum 10 V

● Common mode interference, minimum 400 Hz 50 dB; 60 dB at 60/50/10 Hz

Isochronous mode

The minimum filtering time and processing time (TWE) are 80 µs

Bus cycle time (TDP) is minimum 250 µs

Alarm/diagnosis/status information

The diagnostic function is

alarm

● Diagnostic alarm Yes

● Limit value alarm is; Are two upper limits and two lower limits respectively

diagnosis

● Power supply voltage monitoring is

● The broken line is; Only 1... 5 V and 4... 20 mA hour

● Overflow/Underflow Yes

Diagnostic display LED

● RUN LED Yes; Green LED

● ERROR LED Yes; Red LED

● Power supply voltage monitoring (PWR-LED) is; Green LED

● Channel status display is; Green LED

● For channel diagnosis is; Red LED

● For module diagnosis is; Red LED

Potential isolation

Potential separation of channels

● Between channels no

● Between channels, group the number of points 8

● Between the channel and the backplane bus

● Between the channel and the supply voltage of the electronic component

The allowable potential difference

Between input terminals (UCM) DC 20 V

10 V DC between the input and MANA (UCM)

insulation

Insulation test, using 707 V DC (test type)

Environmental requirements

Operating ambient temperature

● Horizontal installation, minimum value -25 °C; FS02 or later

● Horizontal installation, maximum 60 °C

● Vertical installation, minimum value -25 °C; FS02 or later

● Vertical installation, maximum 40 °C

Operating height with reference to sea level

● Maximum elevation installation height of 5 000 m; The installation height is greater than 2000 m. For details, see the manual

dimension

Width 35mm

Height 147mm

Depth 129 mm

weight

Weight, about 300 g
