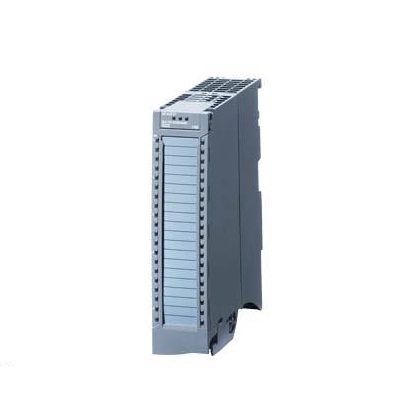

SIMATIC S7-1500, analog output module AQ 4xU/I HF, 16-bit resolution, accuracy 0.1%, 4 channels, 1 per group, common-mode voltage: 30V AC/60V DC, diagnosis; Replacement value, synchronization mode; Modules support safe disconnection of load groups to SIL2 according to ENIEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:415. The scope of supply includes feed elements, shielding brackets and shielding terminals: front connectors (screw type terminals or in-line) ordered separately
General information
Product type label AQ 4xU/I HF
Hardware Function Status FS01 or later
Firmware version V1.1.0
● Updatable firmware is
Product function
● I&M data is; I&M0 to I&M3
● Clock synchronization mode Yes
● Start by priority yes
packaged
● STEP 7 TIA port, configurable/integrated, since version V14 / -
● STEP 7 Configurable/integrated, since version V5.5 SP3 / -
● PROFIBUS version GSD Edition/GSD revision V1.0 / V5.1
● PROFINET version GSD version/GSD revision above v2.3 / -
Operating mode
● Oversampling no
● The MSO is
CiR configuration in action
Parameter assignment can be changed in RUN mode
Can be calibrated in RUN mode Yes
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 19.2 V
The upper limit (DC) is 28.8V
Reverse polarity protection is
Input current
Consumption current, maximum 160 mA
power
Power output from the backplane bus is 0.95W
Power loss
Power loss, typical value 5 W
Analog output
The number of analog outputs is 4
Voltage output, short circuit protection is
Voltage output, short circuit current, maximum 24 mA
Current output, no load voltage, Max 22 V
Minimum cycle time (for all channels) of 125 µs; It is independent of the number of active channels
Output range, voltage
● 0 to 10 V is
● 1 V to 5 V Yes
● -5 V to +5 V No
● -10 V to +10 V Yes
Output range, current
● 0 to 20 mA Yes
● -20 mA to +20 mA Yes
● 4 mA to 20 mA Yes
Actuator connection
● For two wire interface voltage output is
● For four wire interface voltage output is
● For the two-wire interface current output is
Load resistance (in rated output range)
● Minimum value of voltage output 1 kΩ; 1... 0.5 kOhm at 5 V
● Capacitance load at the voltage output, maximum 1 µF
● Current output maximum 750 Ω
● Current output inductive load, maximum 10 mH
Conductor length
● Shielding, maximum 800 m; In the current, the voltage is 200 m
Composition of analog values at the output end
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 16 bits
● Conversion time (per channel) 125 µs; It is independent of the number of active channels
Starting time
● For resistance load 0.2ms; See additional instructions in the manual
● For capacitance load 1.8ms; See additional instructions in the manual
● For inductive load 2 ms; See additional instructions in the manual
Error/accuracy
Output ripple (dependent on output range, bandwidth 0 to 50 kHz), (+/-) 0.02%
Linear error (dependent on output range), (+/-) 0.015%
Temperature error (dependent on output range), (+/-) 0.002 %/K
The maximum value is -100 dB
Repetition accuracy (dependent on output range) at starting vibration at 25 °C, (+/-) 0.005%
When the temperature is below 0°C, the consumption error and temperature error data will be doubled
Operating error limits throughout the temperature range
● Voltage, related to the output range, (+/-) ±10 V; 0 V to 10 V: ±0.12 %; 1 V to 5 V: ±0.1 %
● Current, related to output range, (+/-) ±20 mA; 0 mA to 20 mA: ±0.2 %; 4 mA to 20 mA: ±0.12 %
Basic error limit (operating error limit at 25 °C)
● Voltage, related to output range, (+/-) 0.06%
● Current, related to output range, (+/-) 0.1 %
Isochronous mode
The minimum processing and activation time (TWA) is 100 µs
Bus cycle time (TDP) is minimum 250 µs
Alarm/diagnosis/status information
The diagnostic function is
The accessible alternative value is
alarm
● Diagnostic alarm Yes
diagnosis
● Power supply voltage monitoring is
● The broken line is; Current output type only
● Short circuit is; Voltage output type only
● Overflow/Underflow Yes
Diagnostic display LED
● RUN LED Yes; Green LED
● ERROR LED Yes; Red LED
● Power supply voltage monitoring (PWR-LED) is; Green LED
● Channel status display is; Green LED
● For channel diagnosis is; Red LED
● For module diagnosis is; Red LED
Potential isolation
Potential separation of channels
● Between the channels yes
● Between channels, group the number of points 1
● Between the channel and the backplane bus
● Between the channel and the load voltage L+
The allowable potential difference
60 V DC/30 V AC between different circuits; Insulation measurement for 120 V AC basic insulation between channels and L+ power supply, between channels and backplane bus, between channels
insulation
Insulation test, using 2000 V DC, between channel and L+ power supply; 2000 V DC, between channel and backplane bus; 2000 V DC, between channels; 707 V DC (type test), between L+ supply voltage and backplane bus.
Standards, licenses, certificates
Standard components for safety shut-off are; FS03 or later
Safety off The maximum level of safety that a standard component can achieve
● The performance level complies with ISO 13849-1 PL d
● The class complies with ISO 13849-1 Class 3
● SIL 2 in accordance with IEC 62061
Low attention https://support.industry.siemens.com/cs/de/de/view/39198632 safety cut off
Environmental requirements
Operating ambient temperature
● Horizontal installation, minimum value -25 °C; FS02 or later
● Horizontal installation, maximum 60 °C
● Vertical installation, minimum value -25 °C; FS02 or later
● Vertical installation, maximum 40 °C
dimension
Width 35mm
Height 147mm
Depth 129 mm
weight
Weight, about 300 g
