Technical data

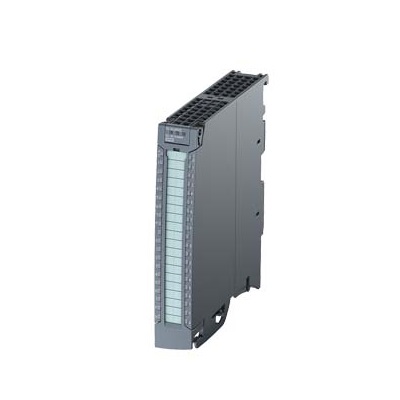

SIMATIC S7-1500, digital output module, DQ32xDC 24V/0.5A BA, 32 channels, each group of 8, 4A each group; Modules support safe disconnection of load groups to SIL2 according to ENIEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:415. Scope of supply includes front connector in - line type
General information
Product Type Mark DQ 32x24VDC/0.5A BA
Hardware Function Status FS01 or later
Firmware version V1.0.0
● Updatable firmware is
Product function
● I&M data is; I&M0 to I&M3
● Clock synchronization mode No
● Start by priority yes
packaged
● STEP 7 TIA port, configurable/integrated, since version V13 / V13
● STEP 7 Configurable/integrated, since version V5.5 SP3 / -
● PROFIBUS version GSD Edition/GSD revision V1.0 / V5.1
● PROFINET version GSD version/GSD revision above v2.3 / -
Operating mode
● DQ is
● DQ with energy-saving function No
● PWM No
● Oversampling no
● The MSO is
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 19.2 V
The upper limit (DC) is 28.8V
Reverse polarity protection is; Through each group of 7 A internal fuses
Input current
Consumption current, maximum 60 mA
Output voltage/heading
Rating (DC) 24 V
power
The power output from the backplane bus is 1.15W
Power loss
Power loss, typical value 3.8W
Digital output
Digital output type transistor
Number of digital output terminals 32
P switch is
Programmable digital output No
Short circuit protection is
● Response threshold, typical value 1 A
Limit of induction shut-off voltage L+ (-53 V)
Control digit input is
Output on-off capability
● The maximum value of resistance under load is 0.5A
● The maximum value of lighting load is 5 W
Load resistance range
● Lower limit 48 Ω
● Maximum 12 kΩ
Output voltage
● For signal "1", minimum L+ (-0.8V)
Output current
● 0.5 A rating for signal "1"
● For the allowable range of signal "1", the maximum value is 0.5A
● For the residual current of signal "0", the maximum is 0.5mA
The output delay when the resistance is loaded
● From "0" to "1", up to 100 µs
● From "1" to "0", up to 500 µs
The two outputs are in parallel
● For logical connection
● Used to increase power No
● For redundancy control load is
Switching frequency
● The maximum value of resistance under load is 100 Hz
● The maximum value of inductive load is 0.5Hz; In accordance with IEC 60947-5-1, DC-13
● The maximum value of lighting load is 10 Hz
Total current at the output
● The maximum current of each channel is 0.5A; See additional instructions in the manual
● The maximum current of each group is 4 A; See additional instructions in the manual
● The maximum current of each module is 16A; See additional instructions in the manual
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
Alarm/diagnosis/status information
Diagnostic function No
Accessible alternative value No
alarm
● Check whether the alarm is generated
● Maintenance alarm No
diagnosis
● Power supply voltage monitoring No
● Disconnect No
● Short circuit No
● Cumulative fault No
Diagnostic display LED
● RUN LED Yes; Green LED
● ERROR LED Yes; Red LED
● Power supply voltage monitoring (PWR-LED) is; Green LED
● Channel status display is; Green LED
● Used for channel diagnosis
● Used for module diagnosis
Potential isolation
Potential separation of channels
● Between channels no
● Between channels, group the number of points 8
● Between the channel and the backplane bus
insulation
Insulation test, using 707 V DC (test type)
Standards, licenses, certificates
Applicable to security function No
Standard components for safety shut-off are; FS02 or later
Safety off The maximum level of safety that a standard component can achieve
● The performance level complies with ISO 13849-1 PL d
● The class complies with ISO 13849-1 Class 3
● SIL 2 in accordance with IEC 62061
Low attention https://support.industry.siemens.com/cs/de/de/view/39198632 safety cut off
Environmental requirements
Operating ambient temperature
● Horizontal installation, minimum value -30 °C; FS04 or later
● Horizontal installation, maximum 60 °C
● Vertical installation, minimum value -30 °C; FS04 or later
● Vertical installation, maximum 40 °C
Operating height with reference to sea level
● Maximum elevation installation height of 5 000 m; The installation height is greater than 2000 m. For details, see the manual
dimension
Width 25 mm
Height 147mm
Depth 129 mm
weight
Weight, about 280 g
other
Tip: The scope of supply includes 40 pin recessed front connectors
