Technical data

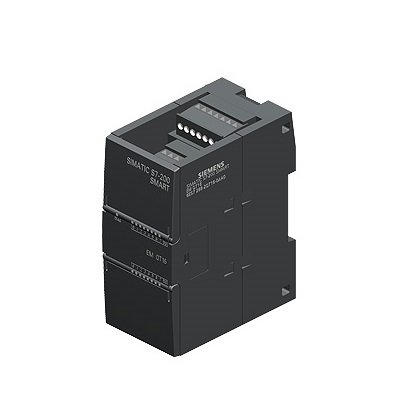

SIMATIC S7-200 SMART, Digital input/Output SM DT16, 8 digital input /8 digital output, 8 DI 24V DC, perfusion current/pull current, 8 DO, Transistor 0.75A
General information
Product type Logo SM DT16, DI 8x24VDC, DQ 8x24VDC / 0.75A
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
Input current
From the backplane bus DC 5 V, typical value 115 mA; 5 V DC from the CPU module
Digital input
Number of input terminals 8
● In the component 2
The parallel switch at the input is
Input characteristics comply with IEC 61131, type 1 is
The number of inputs that can be controlled simultaneously
Horizontal mounting position
- The maximum value is 50 ℃ and the maximum value is 8 ℃
Vertical mounting position
- The maximum value is 40 ℃ and the maximum value is 8 ℃
Input voltage
● Input voltage type DC
● Rating (DC) 24 V
● For signal "0" < 5 V DC
● For signal "1" +15 to +30 V
Input current
● For signal "0", maximum (allowed closed circuit current) 1 mA
● For signal "1", minimum value 2.5mA
● For signal "1", the maximum is 5 mA
● For signal "1", the typical value is 4 mA
Input delay (when input voltage is rated)
For standard input
- When the value ranges from 0 to 1, the maximum value is 200 µs
- When the value ranges from 1 to 0, the maximum value is 200 µs
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 300 m
Digital output
Number of output terminals 8
● In the component 2
M switch No
P switch is
Short circuit protection No
Output on-off capability
● Maximum value of 0.75A when resistance is loaded
● The maximum value of lighting load is 5 W
Output voltage
● Rating (DC) 24 V
● Maximum 0.1V for signal "0"
● For signal "1", minimum value is 20 V
● For signal "1", the maximum value is 28.8V; The maximum value is consistent with the input source L+
Output current
● Rating 0.75A for signal "1"
The output delay when the resistance is loaded
● From "0" to "1", Max. 50 µs
● From "1" to "0", up to 200 µs
The two outputs are in parallel
● For logical connection is; Only the same group output
● Used to increase power is; Possible (same group output only)
● For redundancy control load is; Only the same group output
Total current at output (per group)
All mounting positions
- The maximum value is 40 ℃ and the maximum value is 3 A
Horizontal mounting position
- Maximum 50 ℃, maximum 3 A
Vertical mounting position
- The maximum value is 40 ℃ and the maximum value is 3 A
All other mounting locations
- The maximum value is 40 ℃ and the maximum value is 3 A
Alarm/diagnosis/status information
Diagnostic display LED
● For input side status is
● For output end status is
Potential isolation
Digital input potential isolation
● Between the channels is; Photoelectric coupler
Digital output potential isolation
● Between the channels is; Photoelectric coupler
insulation
Insulation test, using 500V AC for 1 minute
EMV
Resistance to static discharge interference
● Resistance to static discharge interference in accordance with IEC 61000-4-2; ±4 kV contact discharge (in accordance with IEC 801-2/IEC 1000-4-2; ESD); ±8 kV air discharge (in accordance with IEC 801-2/IEC 1000-4-2; ESD)
-- The test voltage of air discharge is 8 kV
-- Test voltage of contact discharge is 4 kV
Anti-interference ability against high frequency electromagnetic field
● Anti-interference against high frequency rays, in line with IEC 61000-4-3
-- High-frequency radiation ranges from 80 to 1000 MHz, 10 V/m, 1.4 to 2.0 GHz, 3 V/m, 2.0 to 2.7 GHz, 1 V/m (87 MHz to 187 MHz, 174 MHz to 230 MHz and 470 MHz to 790 MHz range: 3V/m)
Resistance to interference in relation to wires
● The anti-jamming ability of the power supply wire conforms to IEC 61000-4-4. 2 kV in accordance with IEC 61000-4-4, pulse
● Anti-interference ability of signal wire, in line with IEC 61000-4-4 is; ±2 kV in accordance with IEC 61000-4-4, pulse
Anti-jamming capability against impulse voltage (surge)
● The anti-jamming ability of the power supply wire conforms to IEC 61000-4-5. With front protection element
● Asymmetric coupling
-- Test voltage on the power supply wire 2 kV
-- Test voltage of 2 kV on signal wire (greater than 30 m)
Anti-jamming ability against the amount of wire interference caused by high frequency field
● For high frequency feed anti-interference, in accordance with IEC 61000-4-6
● Anti-interference for high frequency rays, in line with IEC 61000-4-6 is; 10 V/m with 80 % amplitude modulation 1 kHz
-- 9 kHz... The test voltage is 10 V at 80% 1KHz amplitude modulation within 80 MHz range
Suppression of radio interference radiation according to EN 55 011
● Radio radiation interference Emission interference in accordance with EN 50081-2, tested in accordance with EN 55011, Class A, Group 1
● Limit grade A is suitable for industrial applications
Protection level and protection category
Protection level IP Address IP20
dimension
Width 45 mm
Height 100 mm
Depth 81 mm
weight
Weight, about 179.7g
