Technical data

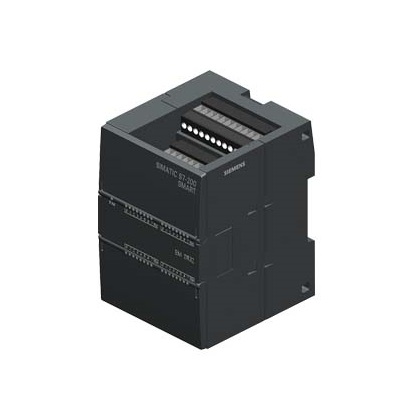

SIMATIC S7-200 SMART, Digital input/Output SM DR32, 16DI/16DO, 16DI 24V DC, feed current/pull current, 16DO, Relay 2A
General information
Product Type Logo SM DR32, DI 16x24 VDC, DQ 16x Relay / 2A
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
Input current
Consumption current, typical value 165 mA; 24 V DC input power current
From the backplane bus DC 5 V, typical value 165 mA; 5 V DC from the CPU module
Digital input
Number Number of input terminals 16
● In the component 2
The parallel switch at the input is
Input characteristics comply with IEC 61131, type 1 is
The number of inputs that can be controlled simultaneously
Horizontal mounting position
- The maximum is 50 ℃, and the maximum is 16 ℃
Vertical mounting position
- The maximum is 40 ℃ and the maximum is 16 ℃
Input voltage
● Input voltage type DC
● Rating (DC) 24 V
● For signal "0" < 5 V DC
● For signal "1" +15 to +30 V
Input current
● For signal "0", maximum (allowed closed circuit current) 1 mA
● For signal "1", minimum value 2.5mA
● For signal "1", the maximum is 5 mA
● For signal "1", the typical value is 4 mA
Input delay (when input voltage is rated)
For standard input
- When the value ranges from 0 to 1, the maximum value is 200 µs
- When the value ranges from 1 to 0, the maximum value is 200 µs
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 300 m
Digital output
Number of output terminals 16
Short circuit protection No
Output current
● For signal "1" rating 2 A
The output delay when the resistance is loaded
● From "0" to "1", Max. 10 ms
● From "1" to "0", Max. 10 ms
Relay output terminal
● The number of relay outputs is 16
● Relay coil L+ (DC) power supply voltage 24 V
- Reverse polarity protection Yes
● Relay consumption current (coil current of all relays), maximum 165 mA
The on-off capacity of the contact
- The maximum value when the inductor is loaded is 2 A
-- The maximum value of lighting load is 30 W; DC time 30 W, AC time 200 W
- Under resistance load, the maximum is 50 ℃, the maximum is 2 A
- Under resistance load, the maximum is 60 ℃, the maximum is 2 A
- The maximum value when the resistance is loaded is 2 A
- Continuous thermal current, maximum value 2 A
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 150 m
Alarm/diagnosis/status information
Diagnostic display LED
● For input side status is
● For output end status is
Potential isolation
Digital input potential isolation
● Between the channels is; Photoelectric coupler
Digital output potential isolation
● Between the channels is; Relay, dry contact
insulation
Insulation test, using input isolation 500 V AC/ min; Output isolation 1500 V AC/ min
EMV
Resistance to static discharge interference
● Resistance to static discharge interference in accordance with IEC 61000-4-2; ±4 kV contact discharge (in accordance with IEC 801-2/IEC 1000-4-2; ESD); ±8 kV air discharge (in accordance with IEC 801-2/IEC 1000-4-2; ESD)
-- The test voltage of air discharge is 8 kV
-- Test voltage of contact discharge is 4 kV
Anti-interference ability against high frequency electromagnetic field
● Anti-interference against high frequency rays, in line with IEC 61000-4-3
-- High-frequency radiation ranges from 80 to 1000 MHz, 10 V/m, 1.4 to 2.0 GHz, 3 V/m, 2.0 to 2.7 GHz, 1 V/m (87 MHz to 187 MHz, 174 MHz to 230 MHz and 470 MHz to 790 MHz range: 3V/m)
Resistance to interference in relation to wires
● The anti-jamming ability of the power supply wire conforms to IEC 61000-4-4. 2 kV in accordance with IEC 61000-4-4, pulse
● Anti-interference ability of signal wire, in line with IEC 61000-4-4 is; ±2 kV in accordance with IEC 61000-4-4, pulse
Anti-jamming capability against impulse voltage (surge)
● The anti-jamming ability of the power supply wire conforms to IEC 61000-4-5. With front protection element
● Asymmetric coupling
-- Test voltage on the power supply wire 2 kV
-- Test voltage of 2 kV on signal wire (greater than 30 m)
Anti-jamming ability against the amount of wire interference caused by high frequency field
● For high frequency feed anti-interference, in accordance with IEC 61000-4-6
● Anti-interference for high frequency rays, in line with IEC 61000-4-6 is; 10 V/m with 80 % amplitude modulation 1 kHz
-- 9 kHz... The test voltage is 10 V at 80% 1KHz amplitude modulation within 80 MHz range
Suppression of radio interference radiation according to EN 55 011
● Radio radiation interference Emission interference in accordance with EN 50081-2, tested in accordance with EN 55011, Class A, Group 1
● Limit grade A is suitable for industrial applications
Protection level and protection category
Protection level IP Address IP20
Standards, licenses, certificates
CE mark is
dimension
Width 70 mm
Height 100 mm
Depth 81 mm
weight
Weight, about 295.4g
