Technical data

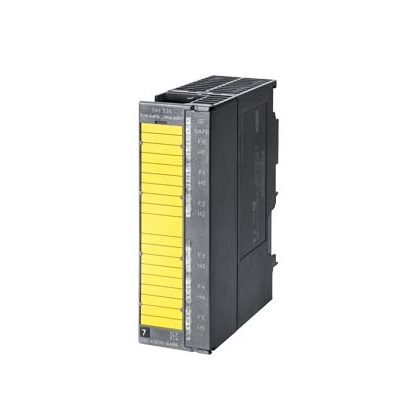

SIMATIC S7, analog input SM 336,6 AE; 15 Bit; Fail-safe analog input for SIMATIC Safety, HART protocol support, up to 4 classes of wire (EN 954-1)/ SIL3(IEC61508)/PLE (ISO13849), 1 20 pins
Supply voltage
Rating (DC) 24 V
Reverse polarity protection is
Load voltage L+
● Rating (DC) 24 V
● Reverse polarity protection is
Input current
From the supply voltage L+, normal 150 mA
From the backplane bus DC 5 V, Max 90 mA
Power loss
Power loss, typical value 4.5 W
Analog input
The number of analog inputs is 6
Current input Allowed input current (damage limit), Max. 40 mA
Input range
● Voltage no
● Current is
● Thermocouple No
● Resistance thermometer No
● Resistance No
Input range (rating), current
● 0 to 20 mA Yes
-- Input resistance (0 to 20 mA) 150Ω; Typical value 150 ohms maximum 175 ohms
● 4 mA to 20 mA Yes
-- Input resistance (4 mA to 20 mA) 150Ω; Typical value 150 ohms maximum 175 ohms
Conductor length
● Shielding, maximum 1 000 m
Input analog value composition
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 16 bits; 15 bits plus VZ
● Integration time (ms) 20 ms @ 50 Hz, 16.7 ms @ 60 Hz
● For interference frequency f1 (unit Hz) interference voltage suppression f=n x (f1 ± 0.5%)
sensor
Signal sensor connection
● For the current measurement as a two-wire system transmitter
● For the current measurement as a four-wire system transmitter
Error/accuracy
Operating error limits throughout the temperature range
● Current, related to the input range, (+/-) 0.2 %; 40µA
Basic error limit (operating error limit at 25 °C)
● Current, related to the input range, (+/-) 0.1 %
Alarm/diagnosis/status information
The diagnostic function is
alarm
● Diagnostic alarm Yes
diagnosis
● Diagnostic information can be read Yes
Diagnostic display LED
● Fail-safe mode is
● Cumulative failure SF (red) is
● Sensor power supply Vs (Green) No
Potential isolation
Simulated input potential isolation
● Between the channels yes
● Between the channel and the backplane bus
● Between the channel and the supply voltage of the electronic component
insulation
Insulation test, use 1 minute at 370V
Standards, licenses, certificates
The maximum level of safety that can be achieved in safe operation
● Comply with EN 954 4
● The performance rating conforms to ISO 13849-1 e
● SIL in accordance with IEC 61508 SIL 3
Connect technology/title
Required front plug 20 pins
dimension
Width 40mm
Height 125 mm
Depth 120 mm
weight
Weight, about 350 g
