Technical data

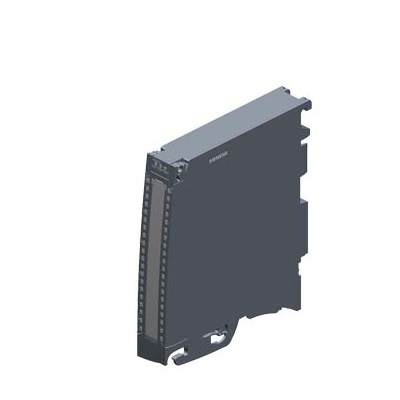

SIMATIC S7-1500, analog input/output module AI 4x U/I/R/RTD/TC ST; 4 channels, 4 in each group; Process alarm; Diagnose AQ 2x U/I ST; 2 channels, 2 in each group; Replacement value; Diagnostic COMMON mode voltage is about 10V 16 Bit; Accuracy 0.3%; The scope of supply includes in-line front panel connectors, feed elements, shield brackets and shield terminals
General information
Product Type Logo AI 4xU/I/RTD/TC /AQ 2xU/I ST
Hardware Function Status FS01 or later
Firmware version V1.0.0
● Updatable firmware is
Product function
● I&M data is; I&M0 to I&M3
● Clock synchronization mode No
● Start by priority No
● Variable measuring range No
● Variable measurement value No
● Measuring range adjustment No
● Variable output range No
packaged
● STEP 7 TIA port, configurable/integrated, since version V13 / V13.0.2
● STEP 7 Configurable/integrated, since version V5.5 SP3 / -
● PROFIBUS version GSD Edition/GSD revision V1.0 / V5.1
● PROFINET version GSD version/GSD revision above v2.3 / -
Operating mode
● Oversampling no
● MSI is
● The MSO is
CiR configuration in action
Parameter assignment can be changed in RUN mode
Can be calibrated in RUN mode Yes
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 19.2 V
The upper limit (DC) is 28.8V
Reverse polarity protection is
Input current
Consumption current, maximum 200 mA
Sensor power supply
24 V sensor power supply
● Short circuit protection is
● Output current, maximum 20 mA; Each channel had a maximum of 47 mA and a duration of < 10 s
power
Power output from the backplane bus is 0.7 W
Power loss
Power loss, typical value 3.3W
Analog input
The number of analog inputs is 4
● Current measurement time 4
● Voltage measurement 4
● Measuring resistance/resistance type thermocouple 2
● When measuring thermocouple 4
Voltage input Allowed input voltage (damage limit), Max. 28.8V
Current input Allowed input current (damage limit), Max. 40 mA
Constant measurement current of resistance sensor, typical values 150 Ohm, 300 Ohm, 600 Ohm, Pt100, Pt200, Ni100:1.25 mA, 6000 Ohm, Pt500, Pt1000, Ni1000, LG-Ni1000:0.625 mA, PTC: 0.472 mA
The technical unit of temperature measurement, adjustable is; °C / °F/K
Analog input with oversampling No
Calibrate the measured value or not
Input range (rating), voltage
● 0 to +5 V No
● 0 to +10 V No
● 1 V to 5 V Yes
- Input resistance (1 V to 5 V) 100 kΩ
● -1 V to +1 V yes
- Input resistance (-1 V to +1 V) 10 MΩ
● -10 V to +10 V Yes
- Input resistance (-10 V to +10 V) 100 kΩ
● -2.5V to + 2.5V Yes
- Input resistance (-2.5V to + 2.5V) 10 MΩ
● -25 mV to +25 mV No
● -250 mV to +250 mV Yes
- Input resistance (-250 mV to +250 mV) 10 MΩ
● -5 V to +5 V Yes
- Input resistance (-5 V to +5 V) 100 kΩ
● -50 mV to +50 mV Yes
- Input resistance (-50 mV to +50 mV) 10 MΩ
● -500 mV to +500 mV Yes
- Input resistance (-500 mV to +500 mV) 10 MΩ
● -80 mV to +80 mV Yes
- Input resistance (-80 mV to +80 mV) 10 MΩ
Input range (rating), current
● 0 to 20 mA Yes
-- Input resistance (0 to 20 mA) 25 Ω; Plus about 42Ohm for overvoltage protection via PTC
● -20 mA to +20 mA Yes
- Input resistance (-20 mA to +20 mA) 25 Ω; Plus about 42Ohm for overvoltage protection via PTC
● 4 mA to 20 mA Yes
-- Input resistance (4 mA to 20 mA) 25 Ω; Plus about 42Ohm for overvoltage protection via PTC
Input range (rating), thermocouple
● Type B is
- Input resistance (Type B) 10 MΩ
● Type C No
● Type E is
- Input resistance (Type E) 10 MΩ
● Type J is
- Input resistance (Type J) 10 MΩ
● Type K is
- Input resistance (Type K) 10 MΩ
● Type L No
● Type N is
- Input resistance (Type N) 10 MΩ
● Type R is
- Input resistance (Type R) 10 MΩ
● Type S is
- Input resistance (Type S) 10 MΩ
● Type T is
- Input resistance (Type T) 10 MΩ
● Type U No
● The type TXK/TXK(L) matches GOST. No
Input range (rating), resistance thermometer
● Cu 10 No
● Conforms to GOST's Cu 10 No
● Cu 50 No
● Conforms to GOST's Cu 50 no
● Cu 100 No
● Cu 100 compliant with GOST No
● Ni 10 No
● Ni 10 in conformity with GOST No
● Ni 100 is; Standard/climate
- Input resistance (Ni 100) 10 MΩ
● Comply with GOST Ni 100 No
● Ni 1000 is yes; Standard/climate
- Input resistance (Ni 1000) 10 MΩ
● Comply with GOST Ni 1000 No
● LG-Ni 1000 Yes; Standard/climate
- Input resistance (LG-Ni 1000) 10 MΩ
● Ni 120 No
● Ni 120 in accordance with GOST No
● Ni 200 No
● Comply with GOST Ni 200 No
● Ni 500 No
● Comply with GOST Ni 500 No
● Pt 10 No
● Pt 10 that complies with GOST No
● Pt 50 No
● Pt 50 in accordance with GOST No
● Pt 100 Yes; Standard/climate
- Input resistance (Pt 100) 10 MΩ
● Pt 100 compliant with GOST No
● Pt 1000 is yes; Standard/climate
- Input resistance (Pt 1000) 10 MΩ
● Comply with GOST Pt 1000 No
● Pt 200 Yes; Standard/climate
- Input resistance (Pt 200) 10 MΩ
● Pt 200 compliant with GOST No
● Pt 500 Yes; Standard/climate
- Input resistance (Pt 500) 10 MΩ
● Pt 500 compliant with GOST No
Input range (rating), resistance
● 0 to 150 ohms is
- Input resistance (0 to 150 ohms) 10 MΩ
● 0 to 300 ohms is
- Input resistance (0 to 300 ohms) 10 MΩ
● 0 to 600 ohms yes
- Input resistance (0 to 600 ohm) 10 MΩ
● 0 to 3000 ohms No
● 0 to 6000 ohms is
- Input resistance (0 to 6000 ohms) 10 MΩ
● PTC is
- Input resistance (PTC) 10 MΩ
Thermocouple (TC)
Conductor length
● Shielding, maximum 800 m; In U/I, R/RTD is 200 m and TC is 50 m
Analog output
The number of analog outputs is 2
Voltage output, short circuit protection is
Voltage output, short circuit current, maximum 24 mA
Current output, no load voltage, Max 22 V
Minimum cycle time (all channels) 3.2ms; ±0.5 ms, independent of the number of activated channels
Output range, voltage
● 0 to 10 V is
● 1 V to 5 V Yes
● -5 V to +5 V No
● -10 V to +10 V Yes
Output range, current
● 0 to 20 mA Yes
● -20 mA to +20 mA Yes
● 4 mA to 20 mA Yes
Load resistance (in rated output range)
● Minimum value of voltage output 1 kΩ; 1... 0.5 kOhm at 5 V
● Capacitance load at the voltage output, maximum 1 µF
● Current output maximum 750 Ω
● Current output inductive load, maximum 10 mH
Conductor length
● Shielding, maximum 800 m; In the current, the voltage is 200 m
Input analog value composition
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 16 bits
● Parameterizable integration time is
● Integration time (ms) 2, 5/16, 67/20/100 ms
● Basic conversion time, including integration time (ms) 9/23/27/107 ms
-- Additional conversion time of 9 ms for line break monitoring
-- Additional conversion time for resistance measurement 150 Ohm, 300 Ohm, 600 Ohm, Pt100, Pt200, Ni100:2 ms, 6000 Ohm, Pt500, Pt1000, Ni1000, LG-Ni1000, PTC: 4 ms
● For interference frequency f1 (unit Hz) interference voltage suppression 400/60/50/10
● Offset calibration time (per module) The basic conversion time of the slowest channel
Measurement filtering
● Parameterizable yes
● Grade: No
● Level: Weak Yes
● Level: Medium Yes
● Level: Strong Yes
Composition of analog values at the output end
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 16 bits
● Conversion time (per channel) 0.5ms
Starting time
● For resistance load 1.5ms
● For capacitive load 2.5ms
● For inductive load 2.5ms
sensor
Signal sensor connection
● For voltage measurement is
● For the current measurement as a two-wire system transmitter
- Dual-wire measurement of the inverter load, maximum 820 Ω
● For the current measurement as a four-wire system transmitter
● For the use of two-wire interface resistance measurement is; PTC only
● For the use of three wire system interface resistance measurement is; All measuring ranges other than PTC; Internal compensation of cable resistance
● For the use of four-wire interface resistance measurement is; All measurement ranges other than PTC
Error/accuracy
Linear error (related to input range), (+/-) 0.02 %
Temperature error (related to input range), (+/-) 0.005% /K; 0.02 ± % / K for TC type T
The maximum value of crosstalk between input terminals is -80 dB
Repetition accuracy (dependent on input range) at starting vibration at 25 °C, (+/-) 0.02%
Output ripple (dependent on output range, bandwidth 0 to 50 kHz), (+/-) 0.02%
Linear error (dependent on output range), (+/-) 0.15%
Temperature error (dependent on output range), (+/-) 0.002 %/K
The maximum value is -100 dB
Repetition accuracy (dependent on output range) at starting vibration at 25 °C, (+/-) 0.05%
Internal compensation temperature fault ±6 °C
