Technical data

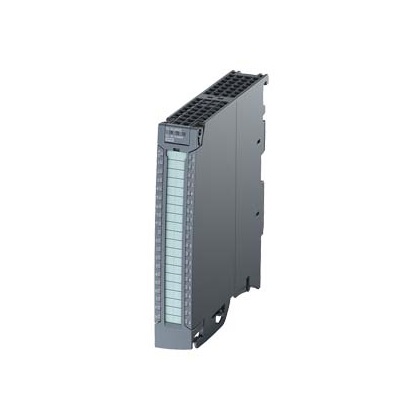

SIMATIC S7-1500, digital input module, 16 digital input x 24 V DC bus adapter, 16 channels divided into groups of 16 each, input delay typical value 3.2ms, input terminal type 3 (IEC 61131); Scope of supply includes front connector in - line type
General information
Product Type Label DI 16x24VDC BA
Hardware Function Status FS01 or later
Firmware version V1.0.0
● Updatable firmware is
Product function
● I&M data is; I&M0 to I&M3
● Clock synchronization mode No
● Start by priority yes
packaged
● STEP 7 TIA port, configurable/integrated, since version V13 / V13
● STEP 7 Configurable/integrated, since version V5.5 SP3 / -
● PROFIBUS version GSD Edition/GSD revision V1.0 / V5.1
● PROFINET version GSD version/GSD revision above v2.3 / -
Operating mode
● DI is
● Counter No
● MSI is
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 19.2 V
The upper limit (DC) is 28.8V
power
The power output from the backplane bus is 1.05 W
Power loss
Power loss, typical value 1.8 W
Digital input
Number Number of input terminals 16
Programmable digital input side No
Source input/leaky input P reads
Input characteristics comply with IEC 61131, type 3 is
Input voltage
● Rating (DC) 24 V
● For signal "0" -30 to +5 V
● For signal "1" +11 to +30V
Input current
● For signal "1", typical value 2.7mA
Input delay (when input voltage is rated)
For standard input
- Parameterized no
- When the value ranges from 0 to 1, the minimum value is 3 ms
- When the value ranges from 0 to 1, the maximum value is 4 ms
- When the value ranges from 1 to 0, the minimum value is 3 ms
- When the value ranges from 1 to 0, the maximum value is 4 ms
For alarm input
- Parameterized no
Used for technical functions
- Parameterized no
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
sensor
Connectable sensor
● Double wire sensor is
- The maximum allowable closed-circuit current (for a dual-wire sensor) is 1.5 mA
Alarm/diagnosis/status information
Diagnostic function No
alarm
● Check whether the alarm is generated
● Process alarm No
diagnosis
● Power supply voltage monitoring No
● Disconnect No
● Short circuit No
Diagnostic display LED
● RUN LED Yes; Green LED
● ERROR LED Yes; Red LED
● Power supply voltage monitoring (PCR-LED) No
● Channel status display is; Green LED
● Used for channel diagnosis
● Used for module diagnosis
Potential isolation
Potential separation of channels
● Between channels no
● Between channels, group the number of points 16
● Between the channel and the backplane bus
insulation
Insulation test, using 707 V DC (test type)
Standards, licenses, certificates
Applicable to security function No
Environmental requirements
Operating ambient temperature
● Horizontal installation, minimum value -30 °C; FS04 or later
● Horizontal installation, maximum 60 °C
● Vertical installation, minimum value -30 °C; FS04 or later
● Vertical installation, maximum 40 °C
Operating height with reference to sea level
● Maximum elevation installation height of 5 000 m; The installation height is greater than 2000 m. For details, see the manual
dimension
Width 25 mm
Height 147mm
Depth 129 mm
weight
Weight, about 230 g
other
Tip: The scope of supply includes 40 pin recessed front connectors
