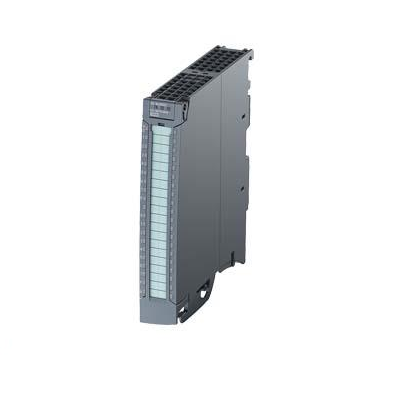

SIMATIC S7-1500, Digital Input Module DI 16x 24... 125V UC HF, 16 channels,
Divided into groups, each group 1; Input delay 0.05.. 20ms; Input terminal type 3 (IEC 61131); Diagnosis; Process alarm: Front connector (bolt terminal or push-pull type) ordered separately
power
Power output from the backplane bus is 1.2 W
Power loss
Power loss, typical value 2.2W; 24 V DC time; 6.0 W at 125 V AC
Digital input
Number Number of input terminals 16
The programmable digital input side is
Source input/leaky input yes
Input characteristics conform to IEC 61131, type 3 is. At 24 V DC
Input voltage
● Rating (DC) 24 V; 48 V, 125 V
● Rating (AC) 24 V; 48 V, 125 V (50-60 Hz)
● For signal "0" -5... +5 V
● For signal "1" +11... +146 V
Input current
● For signal "1", typical value 3 mA; At 24 V DC
