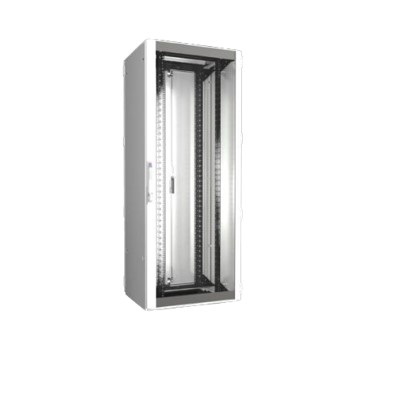

Network/Server cabinet TS IT with glass doors, prefabricated with 19" mounting frame
Product Code :DK 5506.151
TS IT, closed, used for the temperature control system directly related to the cabinet. Includes actual assembly and preassembly. The interior can be expanded to 19" with a 19" mounting frame for different sizes up to 1,500 kg.
Materials:
Steel plates
aluminum
Base corner connector: steel plate
Front/rear base guard plate: steel plate
Corner plates and parallel plates: plastic
Glass door: single safety glass, 3 mm
Surface:
Box frame: Dip primer
Internal expansion: Dip primer
Doors, roof and side panels: Dip primer, powder coating
Color:
Box frames and plates: RAL 7035
Internal installation, base: RAL 9005
Scope of Supply:
Housing frame TS 8 with door, top plate, base and side panel
Transparent aluminum door in front, 180° hinge
Front/rear lock: Comfortable handle for semi-round lock core and safety lock 3524E
Two 482.6 mm (19") mounting frames, front and back, with adjustable depth
Spacer gasket, height 50 mm, for raising the cover plate above the fan opening in the top plate for passive ventilation (included). For versions without openings, no need to use.
Connection fittings for potential balancing devices with central ground points, pre-installed
12 x 19 "fastener 1 U, contact type (included)
50 hex socket round head screws, conductive (included)
Bottom mounting
The front baseplate module is installed as a visual shield
Base system VX, 100 mm, vented
The base corner and the guard plate, side, are bolted
A base guard plate is provided at the front and rear panels and at the square and parallel panels
Side panel, single piece, lockable
4 horizontal legs M12 including base connection sleeve (included)
4 cable clamp rails (T-heads) for external mounting planes to match cabinet depth (included)
10 cabling rings, metal, 125 x 65 mm (included)
IPPC tray
Top plate, multi-section, removable, for rear, lateral cable lead-in device, with covered opening for fan mounting cover plate
Steel plate rear door, closed type, vertical segment, 180° hinge
Size:
Width: 800 mm
Height: 2,000 mm
Depth: 600 mm
Height unit: 42 U
Height, including base: 2,100 mm
Front/rear mounting free space to 19" plane: 87 mm / 65 mm
Layer spacing (in supply condition) : 445 mm
19" Angle rail: Mounting frame, 482.6 mm (19")
Carrying capacity: 15,000 N
Note: Depending on the installation method and location, the opening Angle of the door is different in the specific application
Basic material: steel plate
Packing unit: 1 piece
Weight/Package: 143.5kg
EAN: 4028177705975
ETIM 7.0: EC002499
ECLASS 8.0:27180207
Product Description: TS IT network/Server cabinet, WHD: 800x2000+100x600 mm, 42 U, pre-installed, aluminum alloy glass front door, rear steel door, double opening, 180° hinges, semi-circular comfort handle, multi-function top cover, rear inlet cable, bottom plate, depth: 150 mm, mounted on front as filler plate, Flex-Block base, 100mm ventilated type, single piece side plate, lockable, two pairs of 482.6 mm (19") mounting frame, Front and rear, potential equalisation pre-installed., range of supply, 50 sets of floating nuts and 50 sets of M5 screws, 4 cable fixing guides, 10 bundling rings
