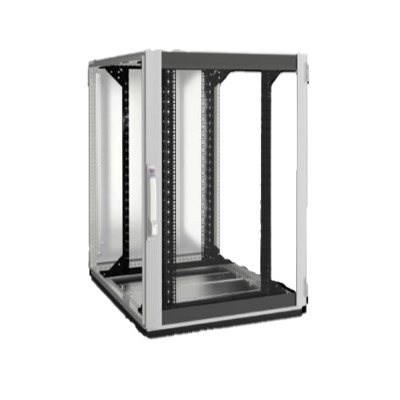

Network/Server Cabinet TS IT with glass door, protection class IP 55, with 19" mounting frame
Product Code :DK 5504.131
TS IT, closed, used for the temperature control system directly related to the cabinet. The interior can be expanded to 19" with a variable depth 19" mounting Angle rail for load bearing up to 1,500 kg in different sizes and protection classes up to IP 55.
Materials
Steel plates
aluminum
Aluminum frame glass door with 3 mm single piece safety glass
Surface:
Box frame: Dip primer
Internal expansion: Dip primer
Doors and roof: Dip primer, powder coating
Color:
Box frames and plates: RAL 7035
Internal expansion: RAL 9005
Scope of Supply:
Housing frame TS 8 with door and top plate
Transparent aluminum door in front, 180° hinge
Steel plate rear door, 180° hinges
Front/rear lock: Comfortable handle for semi-round lock core and safety lock 3524E
Top plate, single piece, closed
Bottom grooved part, with base plate, multi-section, enclosed
Two 482.6 mm (19") mounting frames, front and back, with adjustable depth
Combination seals and seals for base plate (included)
Connection fittings for potential balancing devices with ground points (included)
12 x 19 "fastener 1 U, contact type (included)
50 hex socket round head screws, conductive (included)
IPPC tray
Size:
Width: 800 mm
Height: 1,200 mm
Depth: 1,000 mm
Height unit: 24 U
Front/rear mounting free space to 19" plane: 87 mm / 165 mm
Layer spacing (in supply condition) : 745 mm
Design doors: Closed, IP 55
19" Angle rail: Mounting frame, 482.6 mm (19")
Carrying capacity: 15,000 N
Protection class IP, according to EN 60 529: Protection class IP 55 only when combined with union seals or bolted side panels
Note: Depending on the installation method and location, the opening Angle of the door is different in the specific application
When the cabinet height x depth is 2000 x 1200 mm / 2200 x 1000 mm / 2200 x 1200 mm, an appropriate side panel can be provided and is installed on the cabinet upon delivery
Basic material: Aluminum
Packing unit: 1 piece
Weight/Package: 110.6kg
EAN: 4028177705876
ETIM 7.0: EC002499
ECLASS 8.0:27180207
Product Description: TS IT cabinet T2 RAL7035 800x1200x1000 24U
