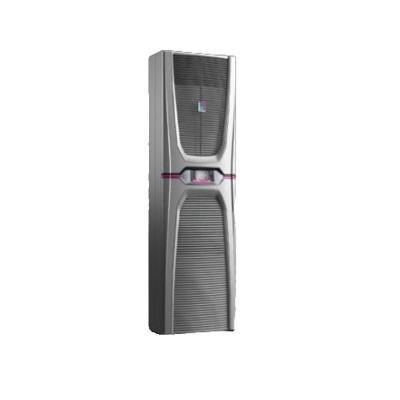

Wall-mounted air conditioner Blue e+ 1.6-5.8kW
Product Code :SK 3187.930
High energy efficiency Blue e+ wall-mounted cooling unit with cooling capacity ranging from 1600 W to 5800 W. Thanks to the use of speed control components and heat pipe technology, the average energy saving 75%. Available in carbon steel and stainless steel specifications.
Product description: Used to install wall-mounted air conditioning. The opening in the door is arranged to facilitate the installation of the wall-mounted air conditioner in the center of the door.
Your benefits:
The speed control unit and heat pipe technology save an average of 75% of electricity consumption.
With its unique multi-voltage compatibility, it is used worldwide
Extend the service life of all components of the control box and cooling unit through curing cooling
Intuitive operation via touch screen and intelligent interface
Material: Steel plate
Color: RAL 7035
Scope of Supply:
Condenser with hydrophobic RiNano coating
Integrated electric condensate evaporator
Includes mounting fasteners
wired
Options:
To facilitate remote monitoring and networking of the cooling unit and Blue e+ cooling unit, use the IoT communication module with product number 3124.300. Remote monitoring of device data, status, and system messages improves machine availability and process security.
Total cooling power, according to DIN EN 14511:
Cooling power L35 L35/50 Hz: 2.6kW
Cooling power L35 L35/60 Hz: 2.6kW
Cooling power L35 L50/50 Hz: 1.82kW
Cooling power L35 L50/60 Hz: 1.82kW
Rated operating voltage:
110 V - 240 V, 1~, 50 Hz/60 Hz
380 V - 480 V, 3~, 50 Hz/60 Hz
Instructions:
Please follow the assembly instructions.
Once the software is downloaded, the user enters into an agreement with Vito to use the software free of charge under the terms of the license.
Note on order numbers: Tolerances: 110 V-10% (99 V) and 240 V + 10% (264 V) / 380 V-10% (342 V) and 480 V + 6% (509 V)
Rated power: 1.05kW
Air flow (free air supply) :
External loop: 1,250 m³/h
Internal loop: 1,250 m³/h
Energy efficiency ratio (EER) is 50/60 Hz L35 L35:
Cooling Capacity L35 L35 (EER) 50 Hz: 2.63
Cooling Capacity L35 L35 (EER) 60 Hz: 2.63
Seasonal energy efficiency ratio (SEER) 50/60 Hz: 6.2
Type: wall mounted
Size:
Width: 450 mm
Height: 1600 mm
Depth: 294 mm
Necessary installation port:
Opening width: 433 mm
Opening height: 1,579 mm
Protection class IP, according to EN 60 529: internal circulation protection class IP 55
Protection category NEMA: UL Type 3R/12
Refrigerant/cooling medium:
Refrigerant: R134a
Quantity: 1.15kg
Global Warming Potential (GWP): 1,430
CO₂ equivalent (CO₂e): 1.64t
Temperature regulator: e+ controller (factory setting +35 °C)
Operating temperature range: -20 °C... 60 °C
Storage temperature range: -40 °C... 70 °C
Refrigerant circuit (active) operating temperature range: 3 °C... 60 °C
Heat pipe operating temperature range: -20 °C... 45 °C
Adjustment range: 20 °C... 50 °C
Rated power Pel:
Rated power L35 L35/50 Hz: 0.99kW
Rated power L35 L35/60 Hz: 0.99kW
Rated power L35 L50/50 Hz: 0.94kW
Rated power L35 L50/60 Hz: 0.94kW
Allowable working pressure (p Max) : 24 bar
Packing unit: 1 piece
Weight/Package: 55.2kg
Tax code: 84158200
Custom Tariff Number China (deviation to global nr) : Differing customs tariff number for China: 84180000
EAN: 4028177708068
ETIM 7.0: EC000855
ECLASS 8.0:27180704
Product Description: SK Blue e+ side air conditioning, 2600W
