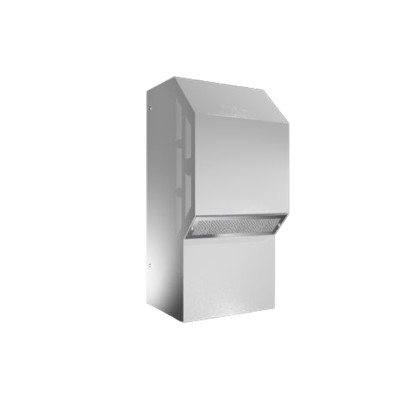

Wall mounted cooling unit TopTherm Blue e, UL Type 3R/4 0.5-2.5kW
Product Code :SK 3305.508
500 W to 2,500 W Energy efficient Blue e wall-mounted air conditioning with built-in comfort e controller and electronic condensate evaporator (1000 W +), protection class UL Type 3R/ 4,12.
Description: High efficiency Blue e wall-mounted cooling equipment comes standard with an energy efficient comfort controller and an electronic condensate evaporator. Protection class UL Type 3R/4, 12.
Your benefits:
Suitable for outdoor Settings
Blue e technology
The Blue e IoT adapter can be connected to the IoT interface for cooling devices with at least 500 W of power and an E-Comfort controller
Material: Steel plate
Color: RAL 7035
Scope of Supply:
Condenser with hydrophobic RiNano coating
wired
Borehole template
Mounting fastener
Integrated electric condensate evaporator
Total cooling power, according to DIN EN 14511:
Cooling power L35 L35/50 Hz: 1.53kW
Cooling power L35 L35/60 Hz: 1.84kW
Cooling power L35 L50/50 Hz: 1.08kW
Cooling power L35 L50/60 Hz: 1.3kW
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Maximum rated current:
At 50 Hz: 5.5A
At 60 Hz: 5.8A
Starting current (Max.) :
At 50 Hz: 12 A
At 60 Hz: 14 A
Air flow (free air supply) :
External loop: 805 m³/h
Internal loop: 585 m³/h
Energy efficiency ratio (EER) is 50/60 Hz L35 L35:
Cooling Capacity L35 L35 (EER) 50 Hz: 2.44
Cooling Capacity L35 L35 (EER) 60 Hz: 2.44
Type: wall mounted
Size:
Width: 405 mm
Height: 1,020 mm
Depth: 358 mm
Protection class IP, according to EN 60 529:
External loop protection level IP 34
Internal circulation protection level IP 56
Protection category NEMA: Protection Category NEMA:
UL Type 3R
UL Type 4
UL Type 12
Refrigerant/cooling medium:
Refrigerant: R134a
Quantity: 0.5kg
Global Warming Potential (GWP): 1,430
CO₂ equivalent (CO₂e): 0.72 t
Temperature regulator: e Comfortable controller (factory setting +35 °C)
Operating temperature range: -20 °C... 50 °C
Operating temperature: The ambient temperature in the compressor cooling mode is at least +10 °C. Start the internal fan only in the temperature range from -20 °C to +10 °C.
Storage temperature range: -40 °C... 70 °C
Adjustment range: 20 °C... 50 °C
Rated power Pel:
Rated power L35 L35/50 Hz: 0.63kW
Rated power L35 L35/60 Hz: 0.75kW
Rated power L35 L50/50 Hz: 0.75kW
Rated power L35 L50/60 Hz: 0.91 kW
Allowable working pressure (p Max) : 28 bar
Front fuse: Automatic fuse/fuse: 16 A
Packing unit: 1 piece
Weight/Package: 51 kg
Tax code: 84158200
Custom Tariff Number China (deviation to global nr) : Differing customs tariff number for China: 84180000
EAN: 4028177943728
ETIM 7.0: EC000855
ECLASS 8.0:27180704
Product Description: SK cooling unit Blue e, wall-mounted, UL Type 3R/4,, 1.53kW, 230V, 1~, 50/60 Hz,, Sheet steel,, WHD: 405 x 1020 x 358 mm,
