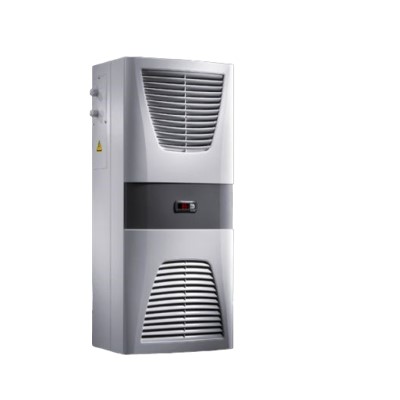

Chiller TopTherm wall mounted
Product Code :SK 3360.100
TopTherm wall chiller can be mounted on cabinet doors or side walls. They centrally and economically cool cooling water and supply mainly to air/water heat exchangers.
Type:
Compact and modular construction of cooling technology components
Cooling water transfer pump
Open system with storage tank
Your benefits:
Precise temperature control via microprocessor adjustment technology
Integrated fault signal with non-potential contact
Adopt dual frequency structure, international common
Color: RAL 7035
Scope of Supply:
Condenser with hydrophobic RiNano coating
All connected units have been completed
Multilingual data, including function diagrams and circuit diagrams
Protection class IP, according to EN 60 529:
Protection Class IP 44 (Electrical)
Total cooling power Tw10/Tu32:
Cooling power Tw10 Tu32/50 Hz: 0.8kW
Cooling power Tw10 Tu32/60 Hz: 0.9kW
Total cooling power Tw18/Tu32:
Cooling power Tw18 Tu32/50 Hz: 1 kW
Cooling power Tw18 Tu32/60 Hz: 1.1kW
Air flow (free air supply) :
Gas flow at 50 Hz: 500 m³/h
Gas flow at 60 Hz: 500 m³/h
Rated operating voltage:
400 V, 3~, 50 Hz
460 V, 3~, 60 Hz
Size:
Width: 400 mm
Height: 950 mm
Depth: 310 mm
Temperature regulator: Microcontroller adjustment (factory setting +20 °C)
Operating temperature range: 10 °C... 43 °C
Cooling medium operating temperature range: 10 °C... 30 °C
Lag temperature difference: ± 2 K
Refrigerant/cooling medium:
Refrigerant: R134a
Quantity: 0.5kg
Global Warming Potential (GWP): 1,430
CO₂ equivalent (CO₂e): 0.72 t
Rated power Pel:
At 50 Hz: 1.16 kW
At 60 Hz: 1.21 kW
Maximum rated current:
At 50 Hz: 4.2A
At 60 Hz: 4 A
Water connection: quick connector (matching parts are in the accessory bag)
Number of refrigeration cycles: 1
Water Tank:
Material: PP plastic
Capacity: 5 l
Packing unit: 1 piece
Weight/Package: 47 kg
Tax number: 84186900
EAN: 4028177351196
ETIM 7.0: EC002516
ECLASS 8.0:27180713
Product Description: I-refrigeration unit for SK M
