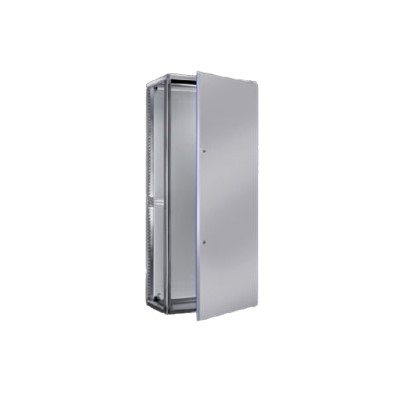

Sanitary design system cabinet HD.
Article number: HD 4000.285.
* * customized solution * * HD large-scale system cabinets can be arranged for areas with high hygiene requirements and need to be cleaned regularly.
Materials:
Box and door: stainless steel 1.4301 (AISI 1.4301).
Sanitary lock core: stainless steel 1.4404 (AISI 316L).
Seals: silicone resin, conforming to FDA Code 21 CFR 177.2600.
Mounting plate: steel plate.
Surface:
Box and door: wire drawing, particle size 400, roughness < 0.8 μ m.
Mounting plate: galvanized.
Seals: dyed blue (RAL 5010).
Scope of supply:
Cabinet frame with welded rear wall bottom plate.
Doors with plug-in sealants.
The door hinge of the single-door cabinet is on the right and can be changed to the left.
Mounting plate.
Screwed in middle latch.
Option: sanitary box bracket with horizontal adjustment function.
Dimensions:
Width: 1200 mm.
Height: 1800 mm.
Depth: 500 mm.
Mounting plate size (W x H): 1099 mm x 1696 mm.
Door opening angle: 125 °.
IK coding: IK08.
Basic material: stainless steel.
Protection grade IP, conforming to IEC 60529 standard:
IP 66.
IP X9.
Protection category NEMA:NEMA 4X.
Packing unit: 1 piece.
Weight / packing: 177kg.
Tax rate number: 94032080.
EAN:4028177967960.
ETIM 7.0:EC000261.
ECLASS 8.0:27180101.
Product description: HD system cabinet, W x H x D: 1200x1800x500mm, stainless steel, with mounting plate, double door
