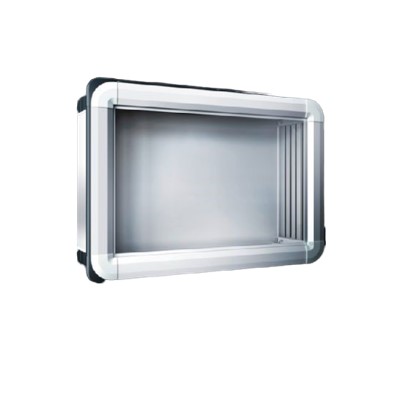

Comfortable operating board
Product Code :CP 6372.552
Aluminum box, strong thermal conductivity, good passive heat dissipation. Light weight, good stability. Protection level IP 65, according to IEC 60 529 standard.
Type: Support arm connection diameter 130 mm
Your benefits:
Aluminum box, strong thermal conductivity, excellent passive heat dissipation performance.
Light weight, good stability
Compatible with all Vutu vertical systems and support arm systems
Materials:
Box: Aluminum extruded profile
Angle connector: zinc die casting
Protection Angle: plastic
Color:
Case: anodized by natural aluminum
Corner connector: RAL 7035
Protective beam: similar to RAL 7024
Scope of Supply:
Operating box with connecting hole for support arm
The 3 mm double-toothed lock core can be replaced with a 41 mm lock core, and can also be replaced with a C-shaped plastic handle and a T-shaped handle
Seals and mounting fasteners for the front panel
The rear wall can be secured by hinges, with hinges on one side of the longest box
Installation depth: 152 mm
Protection level IP, according to IEC 60 529 standard IP 65
Protection category NEMA: NEMA 12
Suitable for front panel width: 520 mm
Suitable for front panel height: 500 mm
Note: The support arm connection can be replaced by rotating the case
Basic material: Aluminum
Lock:
Lock specification: flange
Number of locks: 2
Lock core: 3 mm double teeth
Packing unit: 1 piece
Weight/Packing: 12.3kg
Tax code: 94032080
EAN: 4028177663107
ETIM 7.0: EC002504
ECLASS 8.0:27180505
Product description: Comfortable operating board
