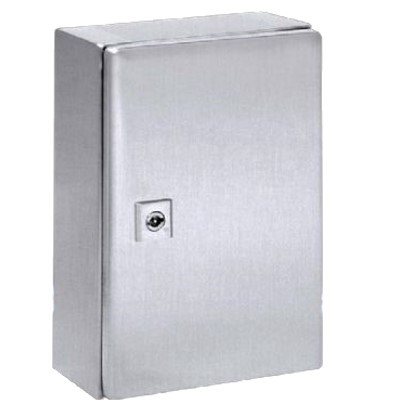

AE stainless steel compact housing, including mounting plate.
Product Code :AE 1006.500
Materials:
Case: stainless steel
Door: stainless steel with foamed polyurethane plastic seals on all sides
Mounting plate: steel plate
Stainless Steel 1.4404 (AISI 316L)
Surface:
Box and door: brushed, particle size 400, roughness < 0.8μm
Mounting plate: galvanized
Scope of Supply:
Box with door
Mounting plate
Lock: 3 mm double teeth
Protection Level NEMA:NEMA 4X
Protection class IP, according to EN 60 529 :IP 66
IK is coded IK08
Size:
Width: 380 mm
Height: 380 mm
Depth: 210 mm
Mounting plate dimensions (W x H) :334 mm x 355 mm
Number of doors :1
Number of locks:
1
The lock
Lock specification: flange
Number of locks: 1
Lock core: 3 mm double teeth
Material lock: Stainless Steel 1.4404 (AISI 316L)
Basic material: stainless steel
Packing unit :1 piece
Weight/Packing: 9.8kg
Tax code :94032080
Custom Tariff Number China (deviation to global nr):Differing customs tariff number for China: 85380000
EAN:4028177421288
ETIM 7.0:EC000261
ECLASS 8.0:27180101
Product Description :AE stainless steel compact control box 380X380X210
