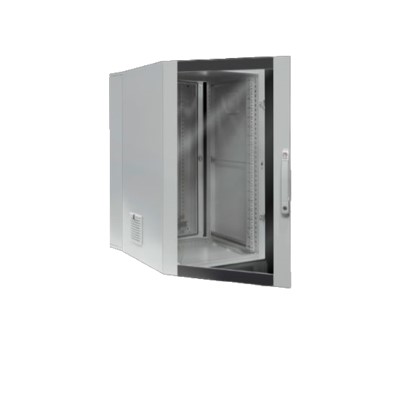

Wall-mounted cabinet EL, 3-section preinstalled with mounting Angle rail, depth adjustable
Product Code :DK 7721.535
The three-section wall-mounted box is preassembled with the following components: sealing cover plate with brush strip assembly at the top, mounting rail, C-shaped rail, discharge filter, grounding rail, wall-mounted fixing bracket
Type: Pre-installed
Product Description: Through the hinge, you can easily operate the wall-mounted cabinet.
Materials:
Wall-mounted parts and rotating parts: steel plate, 1.5 mm
Transparent film for window inspection: single safety glass, 3 mm
Surface: Powder coating
Color:
Wall-mounted parts and rotating parts: RAL 7035
Transparent door: RAL 7035/7015 (Tile grey)
Scope of Supply:
Wall mount components with upper closed cover plate and lower brush strip, two vertically punched rails and horizontal C-rails for cable stress relief
The front and rear frames and the front 19-inch mounting Angle rail hinge connection parts are equipped with 27mm spacing modulus holes, the depth spacing can be adjusted stepless, and the left and right sides are equipped with an outlet filter window
Star ground rail
Decorative transparent door
1 Control cabinet double-toothed key No. 5
Wall plate fixing bracket 10 mm, reinforced
Comfortable handle for lock core and two-point locking device
Safety lock 3524 E
Height unit :21 U
Size:
Width: 600 mm
Height: 1,012 mm
Depth: 673 mm
Installation depth :620 mm
Available sizes:
Available width: 502 mm
Available height: 949 mm
Depth of the rotating part :516 mm
Depth of wall mounting parts :135 mm
IK code :IK08
Bearing capacity of hinge section (static) :750 N
Basic material: steel plate
Protection class IP, according to EN 60 529: Protection class IP 54 is connected with the sealing plate, upper and lower
Packing unit :1 piece
Weight/Packing :61 kg
Tax code :94032080
EAN:4028177551039
ETIM 7.0:EC000261
ECLASS 8.0:27142408
Product description: Board mounted enc 600x1012x673
