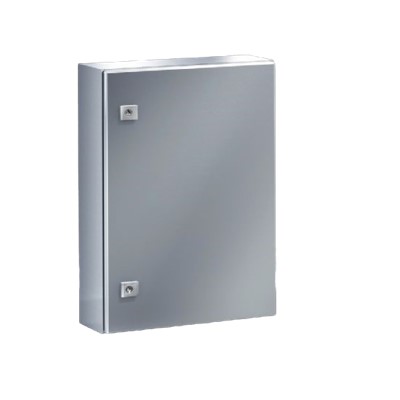

Explosion-proof housing stainless steel, empty housing with hinged doors
Product Code :KEL 9404.600
Stainless steel EX housing with hinged doors
Scope of use:
Zones 1 and 2 or 21 and 22 in accordance with 2014/34/EU
Applicable ambient temperature range: -30 °C... +80 °C
The marked temperature can be limited through the built-in device
Protection class according to EN 60079: Good protection of its internal equipment (Ex tb) by improving the safety of the box (Ex e)
Materials:
Box: Stainless Steel 1.4301 (AISI 304)
Door: Stainless steel 1.4301 (AISI 304) with foamed silicone seal on all sides
Mounting plate: steel plate
Surface:
Box: brushed, particle size 400, roughness < 0.8μm
Mounting plate: galvanized
Scope of Supply:
box
The door
Mounting plate
Size:
Width: 380 mm
Height: 600 mm
Depth: 210 mm
Mounting plate dimensions (W x H) : 334 mm x 570 mm
Certificate IEC EX PTB 09.0035U: Yes
Certificate PTB 02 ATEX 1082U: Yes
Basic material: stainless steel
Lock:
Lock specification: flange
Number of locks: 2
Lock core: 3 mm double teeth
Protection category NEMA: NEMA 4X
Protection level IP, according to IEC 60 529 standard: IP 66
Packing unit: 1 piece
Weight/Packing: 16.9kg
Tax code: 94032080
EAN: 4028177138773
ETIM 7.0: EC002503
ECLASS 8.0:27180502
Product Description: EX explosion-proof box W380H600D210
