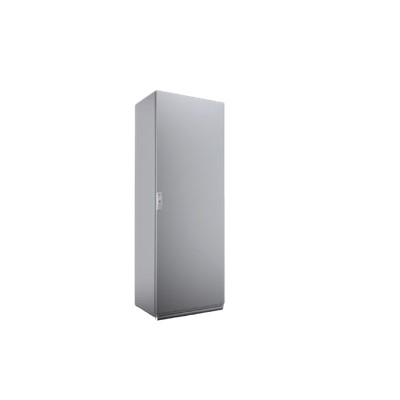

Free-standing cabinet system VX SE stainless steel
Product Code :SE 5853.600
The freestanding cabinet is made of stainless steel and has a solid frame with two built-in mounting planes and bolted rear panels and door panels. The top plate and side panels are rolled from a single steel sheet. Fully compatible with the VX25 parallel cabinet system. Cabinet width from 600 to 1200 mm. It is more efficient because there is no need to install side panels.
Materials:
Box: stainless steel 1.4301 (AISI 304), 1.5mm, brushed appearance
Door: Stainless steel 1.4301 (AISI 304), 2.0mm, brushed exterior
Rear plate: stainless steel 1.4301 (AISI 304), 1.5 mm, brushed exterior
Base plate: Stainless steel 1.4301 (AISI 304), 1.5 mm
Mounting plate: Steel plate, 3.0mm
Surface:
Box, door and back wall: brushed, size 400
Bottom plate: bright
Mounting plate: galvanized
Scope of Supply:
Enclosure is closed on the top and sides
The door
The door hinge of the single door cabinet is on the right side and can be changed to the left side
The rear plate can be unscrewed and removed
Mounting plate
Bottom plate
Lock: 3 mm double teeth
2 perforated rails 18 x 39 mm
Size:
Width: 800 mm
Height: 2,000 mm
Depth: 600 mm
Mounting plate dimensions (W x H) : 699 mm x 1,896 mm
Protection class IP, according to EN 60 529: IP 55
Protection category NEMA: NEMA 12
Models are certified according to UL 50E certification standards: Types 1, 2, 3, 3R, 12
IK code: IK10
Number of doors: 1
Description: Due to the hardness of the material, we recommend the use of hexagonal low cylindrical head metal plate screw 2486.400 for internal assembly
Basic material: Stainless Steel 1.4301 (AISI 304)
Packing unit: 1 piece
Weight/Packing: 144 kg
EAN: 4028177959385
ETIM 7.0: EC000261
ECLASS 8.0:27180101
Product Description: VX SE Free-standing enclosure system, WHD: 800x2000x600mm, Stainless Steel, 1.4301, with mounting plate, single door at the front
