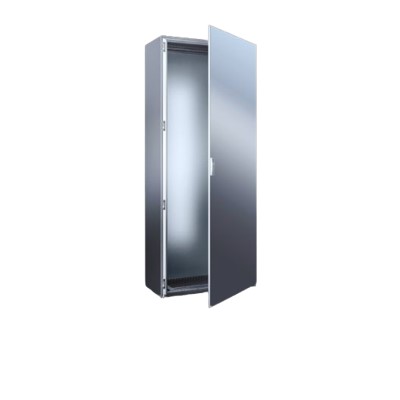

Independent cabinet system VX SE Protection Class IP 66/NEMA 4X
Product Code :SE 5852.680
The freestanding cabinet is made of stainless steel and has a solid frame with two built-in mounting planes and bolted rear panels and door panels. The top plate and side panels are rolled from a single steel sheet. Fully compatible with the VX25 parallel cabinet system. It is more efficient because there is no need to install side panels. Increased protection level to IP 66/NEMA 4X.
Materials:
Box: stainless steel 1.4301 (AISI 304), 1.5mm, brushed appearance
Door: Stainless steel 1.4301 (AISI 304), 2.0mm, brushed exterior
Rear plate: stainless steel 1.4301 (AISI 304), 1.5 mm, brushed exterior
Mounting plate: Steel plate, 3.0mm
Base: Stainless steel 1.4301 (AISI 304), 1.5 mm
Surface:
Box, rear wall and door: brushed, size 400
Mounting plate: galvanized
Base, without coating
Scope of Supply:
Enclosure is closed on the top and sides
The door
The door hinges on the right and can be changed to the left
The rear plate can be unscrewed and removed
Mounting plate
Bottom, seal the cover
Lock: 3 mm double teeth
2 perforated rails 18 x 39 mm
Size:
Width: 800 mm
Height: 1,800 mm
Depth: 500 mm
Mounting plate dimensions (W x H) : 699 mm x 1,696 mm
Protection class IP, according to EN 60 529: IP 66
Protection category NEMA: NEMA 4X
Models are certified according to UL 50E certification standards: Types 1, 2, 3, 3X, 3R, 3RX, 4, 4X, 12
IK code: IK10
Description: Due to the hardness of the material, we recommend the use of hexagonal low cylindrical head metal plate screw 2486.400 for internal assembly
Basic material: Stainless Steel 1.4301 (AISI 304)
Packing unit: 1 piece
Weight/Package: 134 kg
EAN: 4028177959408
ETIM 7.0: EC000261
ECLASS 8.0:27180101
Product Description: VX SE Free-standing enclosure system, WHD: 800x1800x500 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front
