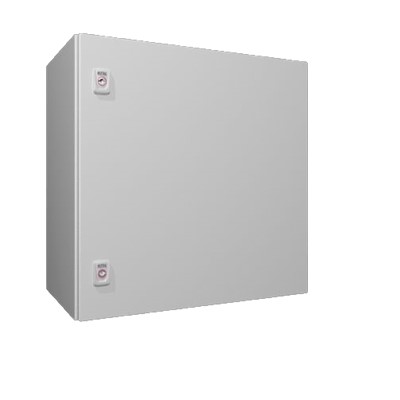

AX IT wall-mounted housing with 19. Mounting Angle rails with adjustable depth
Product Code :AX_IT 7643.350
IT wall-mounted enclosures with high levels of protection are suitable for industrial applications. Use a 19 "mounting rail with adjustable depth and a brush seal plate to lead the cable to the chassis floor. Protection level up to IP 66 (depending on the seal plate selected).
Product Description: AX-based IT wall-mounted enclosures with high protection levels are suitable for industrial applications.
Your benefits:
The fully pre-installed IT cabinet is instantly secured with a 19" IT Angle rail thanks to the depth adjustable mounting Angle rail
The welded housing construction with a fully enclosed body ensures maximum protection of the extension components up to IP 66
The door hinges on the right and can be changed to the left
Maximum usable internal volume in extremely compact construction form
Personalized interior expansion
The maximum opening at the bottom of the cabinet with optimized sealing covers increases cable laying space by 33%
The cable is easily introduced from below via a sealing plate with integrated brush strips
Scope of use:
IT cabinets for indoor use
Securely and defensively integrate IT into your production equipment processes
Material: Steel plate
Surface:
Box and door: dip primer, outer warp powder coating, weaving
Internal expansion parts: galvanized
Basic color: RAL 7035
Color: RAL 7035
Scope of Supply:
The pre-installed IT box is equipped with hinged doors and enclosed on all sides
Flange lock with 3 mm double tooth lock core
Seal cover plate with brush strip
19 "front mounting rail, depth adjustable in 25 mm grating, mounted on 4 internal expansion rails
Mounting Angle bracket
C-rail, mounted on the rear wall
Size:
Width: 600 mm
Height: 600 mm
Depth: 350 mm
Installation depth: 278 mm
Installation height for components: 12 U
Doorstop position: right, can be switched to left
Number of locks: 2
Installation possibilities:
Pre-installed mounting Angle including C-rail for cable stress relief
The mounting Angle is used to secure a central ground bus
Mounting Angle for mounting the 19" power supply board
Instructions:
Quotations are available for UL approved models
Basic material: steel plate
Lock:
Lock specification: Flange lock with 3 mm double tooth lock core
Number of locks: 2
Protection class IP, according to EN 60 529:
IP 10 (up to IP 66 upon request)
Protection class up to IP 66 (depending on selected cable cover)
Cover plate sealing:
Size: 7
Quantity: 1
Packing unit: 1 piece
Weight/Packing: 23.42kg
Tax code: 94032080
EAN: 4028177942400
ETIM 7.0: EC002500
ECLASS 8.0:27180208
Product Description: AX IT wall-mounted IT distributor, 12 U, without mounting plate, with 482.6mm (19") mounting angles, WHD: 600x600x350 mm (AX 1360), Pre-asembled IT enclosure with:, with hinged door, of all-round solid construction
