Total cooling power of TopTherm Blue e for top-mounted air conditioners is 0.50-4.00 kW.
Article number: SK 3385.610.

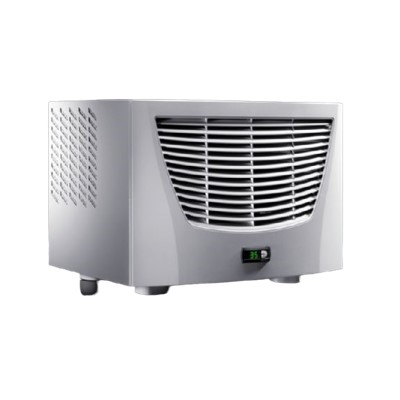

High energy efficiency Blue e top-mounted air conditioner with cooling power from 500W to 4000 W.
Standard built-in comfort controller and electric condensate evaporator.
Product description: energy-efficient Blue e top-mounted air conditioners are equipped with energy-saving and comfortable controllers and electronic condensate evaporators.
Your benefit: can be connected to the IoT interface through the Blue e IoT adapter for cooling equipment with an e-Comfort controller with a cooling power of no less than 500W.
Material: stainless steel 1.4301 (AISI 1.4301).
Color: RAL 9007.
Scope of supply:
Condenser with hydrophobic RiNano coating.
Integrated electric condensate evaporator.
Connected wire (pluggable terminal block).
Drilling formwork.
Install the fixture.
Total cooling power, meeting DIN EN 14511 requirements:
Cooling power L35 L35 Compact 50 Hz: 2 kW.
Cooling power L35 L35 Compact 60 Hz: 2.14 kW.
Cooling power L35 L50 Compact 50 Hz: 1.41 kW.
Cooling power L35 L50 Compact 60 Hz: 1.51 kW.
Rated operating voltage: 115V, 1V, 50 Hz/60 Hz.
Description: top-mounted air conditioner 3273.500 can also be installed in office space because of its low noise level.
Maximum rated current:
At 50 Hz: 13.3A.
At 60 Hz: 13.5A.
Starting current (maximum):
At 50 Hz: 42.2 A.
At 60 Hz: 31.1 A.
Air flow (free air supply):
External circuit: 1760 m ³/ h.
Internal circuit: 470 m ³/ h.
The energy efficiency ratio (EER) is 50 Hz 60 Hz L35 L35:
Cooling capacity L35 L35 (EER) 50 Hz: 2.09.
Cooling capacity L35 L35 (EER) 60 Hz: 1.88.
Type: top mounting type.
Dimensions:
Width: 597mm.
Height: 417 mm.
Depth: 475 mm.
Protection grade IP, conforming to EN 60529 standard:
External circulation protection level IP 34.
Internal circulation protection level IP 54.
Refrigerant / refrigerant medium:
Refrigerant: R134a.
Quantity: 0.9 kg.
Global warming potential (GWP): 1430.
CO equivalent (CO equivalent): 1.29t.
Connection method:
Plug-in terminal block.
Switch on duration.
100%.
Temperature regulator: e comfortable controller (factory setting + 35 °C).
Operating temperature range: 10 °C.. 55 °C.
Storage temperature range:-40 °C.. 70 °C.
Adjustment range: 20 °C.. 55 °C.
Rated power Pel:
Rated power L35 L35 Compact 50 Hz: 0.95 kW.
Rated power L35 L35 Compact 60 Hz: 1.17 kW.
Rated power L35 L50 amp 50 Hz: 1.14 kW.
Rated power L35 L50 amp 60 Hz: 1.31 kW.
Allowable working pressure (p maximum): 28 bar.
Description of order number: please inquire about the time of supply.
Front fuse: transformer protection switch: 14.20A.
Packing unit: 1 piece.
Weight / packing: 48 kg.
Tax rate number: 84158200.
Custom Tariff Number China (deviation to global nr): Differing customs tariff number for China: 84180000.
EAN:4028177380189.
ETIM 7.0:EC000855.
ECLASS 8.0:27180704.
Product description: SK Blue e cooling equipment, top-mounted, 2 kW,115 Vret 1 minute 50 Hz, stainless steel, W x H x D: 597 x 417 x 475 mm
