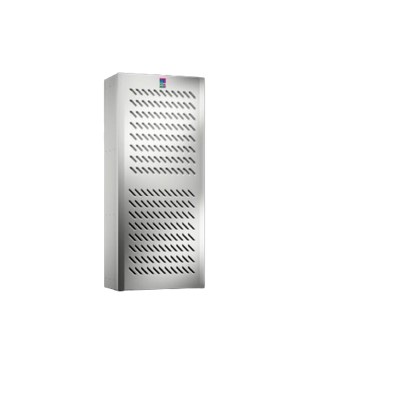

Blue e+ Outdoor wall mounted cooling equipment 1.5-5.0kW
Product Code :SK 3187.330
High energy efficiency Blue e+ outdoor wall mounted cooling unit with cooling capacity ranging from 1500 W to 5000 W. Protection classes up to IP56 / UL 12/3R/4, suitable for temperatures ranging from -30°C to 60°C, provide optimal protection even in harsh environmental conditions. The cooling unit can be installed in three ways (external, semi-embedded and fully embedded), for example in the Toptec project solution.
Description: The high energy efficiency Blue e+ outdoor wall-mounted cooling unit is suitable for global applications due to its multi-voltage compatibility and can be used in applications such as Toptec project solutions.
Your benefits:
The speed control unit and heat pipe technology save an average of 75% of electricity consumption.
Extend the service life of all components of the control box and cooling unit through curing cooling
Intuitive operation via touch screen and intelligent interface
Material: Aluminum magnesium alloy
Surface:
Powder coating
Uv resistant pure polyester
Color: RAL 7035
Scope of Supply:
Condenser with hydrophobic RiNano coating
Integrated electric condensate evaporator
wired
Mounting frame for general purpose fixing on outdoor boxes for outboard, semi-recessed and fully recessed mounting
Includes mounting fasteners
Options:
To facilitate remote monitoring and networking of the cooling unit and Blue e+ cooling unit, use the IoT communication module with product number 3124.300. Remote monitoring of device data, status, and system messages improves machine availability and process security.
Total cooling power, according to DIN EN 14511:
Cooling power L35 L35/50 Hz: 2.5kW
Cooling power L35 L35/60 Hz: 2.5kW
Cooling power L35 L50/50 Hz: 1.75kW
Cooling power L35 L50/60 Hz: 1.75kW
Rated operating voltage:
110 V - 240 V, 1~, 50 Hz/60 Hz
380 V - 480 V, 3~, 50 Hz/60 Hz
Description: Once the software is downloaded, the user enters into an agreement with Vito to use the software free of charge under the terms of the license.
Note on order numbers: Tolerances: 110 V-10% (99 V) and 240 V + 10% (264 V) / 380 V-10% (342 V) and 480 V + 6% (509 V)
Rated power: 1.05kW
Rated power Pel:
Rated power L35 L35/50 Hz: 1.08kW
Rated power L35 L35/60 Hz: 1.08kW
Rated power L35 L50/50 Hz: 1.03kW
Rated power L35 L50/60 Hz: 1.03kW
Temperature regulator: e+ controller (factory setting +35 °C)
Size:
Width: 465 mm
Height: 1,640 mm
Depth: 260 mm
Device dimensions (including sealing frame and decorative cover) :
Width: 517 mm
Height: 1,692 mm
Depth: 260 mm
Installation type: Universal installation (external, semi-embedded and fully embedded)
Protection class IP, according to IEC 60 529 standard:
With mounting frame: internal circulation, protection class IP56
Without mounting frame: internal circulation, protection class IP54
Protection category NEMA: Protection Category NEMA:
With mounting frame: UL Type 12/3R/4
Without mounting frame: UL Type 12/3R
Air flow (free air supply) :
External loop: 1,250 m³/h
Internal loop: 1,250 m³/h
Refrigerant/cooling medium:
Refrigerant: R134a
Quantity: 1.15kg
Global Warming Potential (GWP): 1,430
CO₂ equivalent (CO₂e): 1.64t
Energy efficiency ratio (EER) is 50/60 Hz L35 L35:
Cooling Capacity L35 L35 (EER) 50 Hz: 2.31
Cooling Capacity L35 L35 (EER) 60 Hz: 2.31
Applicable to:
Container type: Toptec
Width: ≥ 800 mm
Height: ≥ 1,800 mm
Matching model: 9888.560
Adjustment range: 20 °C... 50 °C
Operating temperature range: -30 °C... 60 °C
Refrigerant circuit (active) operating temperature range: 3 °C... 60 °C
Heat pipe operating temperature range: -30 °C... 45 °C
Storage temperature range: -40 °C... 70 °C
Allowable working pressure (p Max) : 2.4
Noise level: 70 dB(A)
Packing unit: 1 piece
Weight/Packing: 56.8kg
Tax code: 84158200
EAN: 4028177967311
ETIM 7.0: EC000855
ECLASS 8.0:27180704
Product Description: SK Blue e+ cooling equipment, outdoor wall mounted, 2.5kW, 110-240 V, 1~, 380-480 V, 3~, 50-60 Hz, aluminum, W x H x D: 465 x 1640 x 260 mm
