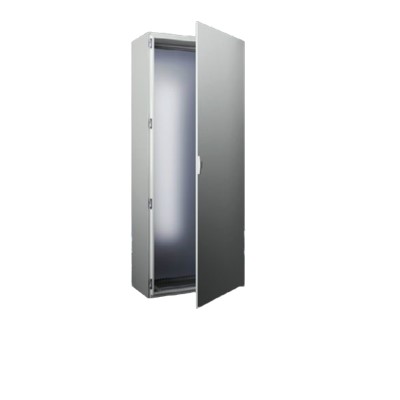

Independent cabinet system VX SE IP 66/NEMA 4
Product Code :SE 5831.680
The freestanding cabinet is made of steel plates, has a solid frame, two mounting planes, and a bolted rear panel and door panel. The top plate and side panels are rolled from a single steel sheet. Fully compatible with the VX25 parallel cabinet system. It is more efficient because there is no need to install side panels. Protection level increased to IP 66/NEMA 4.
Materials:
Box: 1.5mm steel plate
Door: Steel plate, 2.0mm
Rear wall: Steel plate, 1.5 mm
Base: Steel plate, 1.5 mm
Mounting plate: Steel plate, 3.0mm
Surface:
Box, door and back wall: dip primer, powder coating, weaves
Mounting plate: galvanized
Base: Dip primer and powder coating, weave
Color: RAL 7035
Scope of Supply:
Enclosure is closed on the top and sides
The door
The door hinges on the right and can be changed to the left
Mounting plate
Bottom, seal the cover
The rear plate can be unscrewed and removed
Lock: 3 mm double teeth
2 perforated rails 18 x 39 mm
Size:
Width: 800 mm
Height: 1,800 mm
Depth: 400 mm
Mounting plate dimensions (W x H) : 699 mm x 1,696 mm
Protection class IP, according to EN 60 529: IP 66
Protection category NEMA: NEMA 4
Models are certified according to UL 50E certification standards: Types 1, 2, 3, 3R, 4, 12
IK code: IK10
Number of doors: 1
Basic material: steel plate
Packing unit: 1 piece
Weight/Package: 125 kg
EAN: 4028177959309
ETIM 7.0: EC000261
ECLASS 8.0:27180101
Product Description: VX SE Free-standing enclosure system, WHD: 800x1800x400 mm, Sheet steel, with mounting plate, single door at the front
