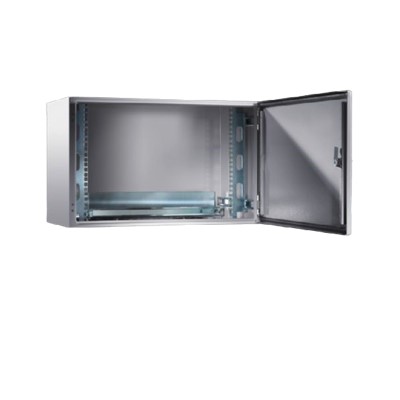

Wall-mounted housing AE with 19. Mounting Angle rails with adjustable depth
Product Code :DK 7645.000
Wall-mounted housing for small networks with stationary 19" fixed plane and seal plate with brush strip for leading cables from the bottom. Protection level: IP 55.
Product Description: Wall-mounted box for small network and high protection level.
Material: Box: steel plate
Surface:
Box: powder-coated
Mounting Angle rail: galvanized
Color :RAL 7035
Scope of Supply:
Housing is equipped with hinged doors
The door hinges on the right and can be changed to the left
Flange lock with 3 mm double tooth lock core
A seal plate with brush strips for leading cables from the bottom of the housing
Mounting Angle rail, 482.6 mm (19"), stepless depth adjustable
Type C mounting Angle rail for collecting the cable on the rear wall
Sheet metal corner brackets are used to choose between securing a ground rail or an inch socket plate
Size:
Width: 600 mm
Height: 760 mm
Depth: 350 mm
Installation depth :310 mm
Installation height for components :16 U
Doorstop position: right, can be switched to left
Number of locks :2
Basic material: steel plate
Protection class IP, according to EN 60 529: Protection class up to IP 66 (depending on the cable cover chosen)
Cover plate sealing:
Size: 5
Quantity: 1
Packing unit :1 piece
Weight/Packing: 32.2kg
Tax code :94032080
EAN:4028177147041
ETIM 7.0:EC002500
ECLASS 8.0:27180208
Product Description :DK board - Installation. DISTR. Cabinet
