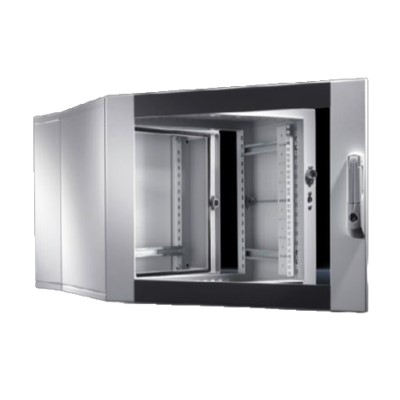

Wall-mounted housing EL, 3-stage with punch rail and mounting Angle rail, depth adjustable
Product Code :DK 7712.135
The three-section wall-mounted box is preassembled with the following components: upper and lower closed cover plate, mounting rail, C-shaped rail, wall-mounted fixed bracket. Protection level: IP 55.
Type: equipped with punching rail and mounting Angle rail, depth adjustable
Product description: The best access to the wall-mounted box can be achieved through the rotating part.
Materials:
Wall-mounted parts and rotating parts: steel plate, 1.5 mm
Transparent film for window inspection: single safety glass, 3 mm
Surface: Powder coating
Color:
Wall-mounted parts and rotating parts: RAL 7035
Transparent door: RAL 7035/7015 (Tile grey)
Scope of Supply:
Wall mount components with upper closed cover plate and lower brush strip, two vertically punched rails and horizontal C-rails for cable stress relief
The front and rear frames and the front 19-inch mounting Angle rail hinge connections are provided with 26mm spaced modular holes with stepless depth spacing
Four 10 mm wall mounting brackets
Decorative transparent door
1 Control cabinet double-toothed key No. 5
Miniature comfortable handle for lock core
Safety lock 3524 E
Height unit :12 U
Size:
Width: 600 mm
Height: 612 mm
Depth: 473 mm
Installation depth :420 mm
Available sizes:
Available width: 502 mm
Available height: 549 mm
Depth of the rotating part :316 mm
Depth of wall mounting parts :135 mm
IK code :IK08
Bearing capacity of hinge part (static) :600 N
Basic material: steel plate
Protection class IP, according to EN 60 529 :IP 55
Packing unit :1 piece
Weight/Packing :36 kg
Tax code :94032080
EAN:4028177324190
ETIM 7.0:EC000261
ECLASS 8.0:27142408
Product description :DK 12U distribution cabinet RAL7035
