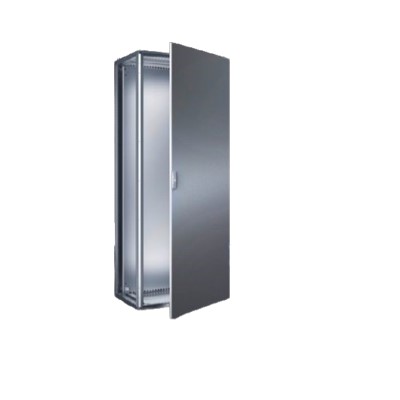

Parallel cabinet system TS 8 Protection class IP 66/NEMA 4X
Product Code :TS 8450.680
Parallel cabinet system TS 8, stainless steel 1.4301 (AISI 304), including mounting plate. The protection level is IP 66, which meets NEMA 4X requirements.
Materials:
Box frame: Stainless steel 1.4301 (AISI 304), 1.5mm
Cover: Stainless steel 1.4301 (AISI 304), 2.0mm, brushed exterior
Door: Stainless steel 1.4301 (AISI 304), 2.0mm, brushed exterior
Rear plate: stainless steel 1.4301 (AISI 304), 1.5 mm, brushed exterior
Base: Stainless steel 1.4301 (AISI 304), 3.0mm
Mounting plate: Steel plate, 3.0mm
Surface:
Box frame and bottom plate: bright
Doors, roof and rear walls: externally brushed, size 400
Mounting plate: galvanized
Scope of Supply:
Housing frame
The door
The door hinges on the right and can be changed to the left
tectum
Base, enclosed
Posterior wall
Mounting plate
4 transport rings
Lock: 3 mm double teeth
2 TS punching rails 18 x 38 mm
Accessory kit for side panels for extension to protection level IP 66
Install two depth support bars in the depth direction of the cabinet
Number of doors: 1
Protection level IP, according to IEC 60 529 standard: IP 66
Models are certified in accordance with UL 50E certification standards: Type 1, 3R, 4, 4X, 12
Protection category NEMA: NEMA 1, 3R, 4, 4X, 12
IK code: IK09
Note: Due to the hardness of the material, we recommend the use of hexagonal round head sheet metal screws in indoor construction.
Basic material: stainless steel
Size:
Width: 800 mm
Height: 2,000 mm
Depth: 600 mm
Mounting plate dimensions (W x H) : 699 mm x 1,896 mm
Packing unit: 1 piece
Weight/Package: 128.9kg
EAN: 4028177602526
ETIM 7.0: EC000261
ECLASS 8.0:27180101
Product Description: TS cabinet combination system, width, height and depth: 800x2000x600mm, stainless steel 1.4301, IP66 / NEMA 4x, with mounting plate, steel plate, front single door
