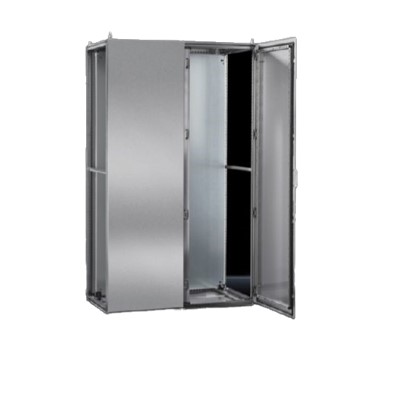

Parallel cabinet system TS 8 stainless steel
Product Code :TS 8451.600
Parallel cabinet system TS 8, stainless steel 1.4301 (AISI 304), including mounting plate. Protection level: IP 55.
Materials:
Box frame: Stainless steel 1.4301 (AISI 304), 1.5mm
Cover: stainless steel 1.4301 (AISI 304), 1.5mm, brushed exterior
Door: Stainless steel 1.4301 (AISI 304), 2.0mm, brushed exterior
Rear plate: stainless steel 1.4301 (AISI 304), 1.5 mm, brushed exterior
Base plate: Stainless steel 1.4301 (AISI 304), 1.5 mm
Mounting plate: Steel plate, 3.0mm
Surface:
Box frame and bottom plate: bright
Doors, roof and rear walls: externally brushed, size 400
Mounting plate: galvanized
Scope of Supply:
Housing frame
The door
The door hinge of the single door cabinet is on the right side and can be changed to the left side
Roof plate
Bottom plate
Posterior wall
Mounting plate
4 transport rings
Lock: 3 mm double teeth
2 TS punching rails 18 x 38 mm
Install two depth support bars in the depth direction of the cabinet
2 supportstrips in depth: Yes
Number of doors: 2
Protection level IP, according to IEC 60 529 standard: IP 55
Models are certified according to UL 50E certification standards: Type 1, 12
Protection category NEMA: NEMA 1, 12
IK code: IK09
Note: Due to the hardness of the material, we recommend the use of hexagonal round head sheet metal screws in indoor construction.
Basic material: stainless steel
Size:
Width: 1,200 mm
Height: 2,000 mm
Depth: 600 mm
Mounting plate dimensions (W x H) : 1,099 mm x 1,896 mm
Packing unit: 1 piece
Weight/Packing: 194.7kg
EAN: 4028177300781
ETIM 7.0: EC000261
ECLASS 8.0:27180101
Product Description: TS cabinet combination system, width, height and depth: 1200x2000x600mm, stainless steel 1.4301, with mounting plate, front two doors
