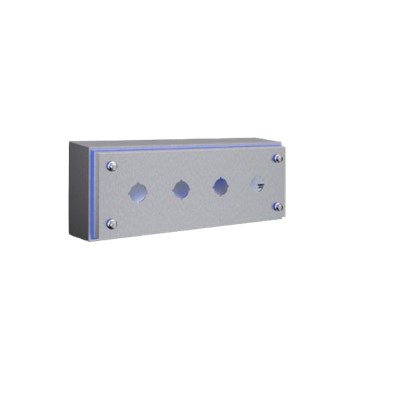

Sanitary design keying box HD
Product Code :HD 1684.600
Customized case for the food and beverage industry with four notches for keys. Seamless silicone seal between box and cover plate. Meet hygienic requirements for quick release of hexagonal fasteners.
Type:
Cabinet tilt forward 3°
Materials:
Case and lid: stainless steel 1.4301 (AISI 304), 1.5 mm
Screw plug stainless steel
Seal: Silicone, in accordance with FDA specification 21 CFR 177.2600
Surface:
Box and lid: brushed, particle size 400, roughness < 0.8µm
Seals: dyed blue (RAL 5010)
Scope of Supply:
enclosure
Top cover with keyboard
Seals and locking devices (included)
Size:
Width (front) : 100 mm
Width (rear) : 122 mm
Front height: 280 mm
Height rear: 302 mm
Depth: 90 mm
Spacing size: 60 mm
Number of control key openings, diameter 22.5mm: 4
IK code: IK08
The lock
Lock specifications: hexagonal fast locking device in line with sanitary conditions
Number of locks: 4
Protection class IP, according to IEC 60 529 standard:
IP 66
IP 69
Protection category NEMA: NEMA 1, 3, 3X, 4, 4X, 12, 13
Models are certified according to UL 50E certification standards: Types 1, 3, 3X, 4, 4X, 12, 13
Packing unit: 1 piece
Weight/Packing: 1.98kg
Tax number: 94039910
EAN: 4028177958692
ETIM 7.0: EC002713
ECLASS 8.0:27180101
