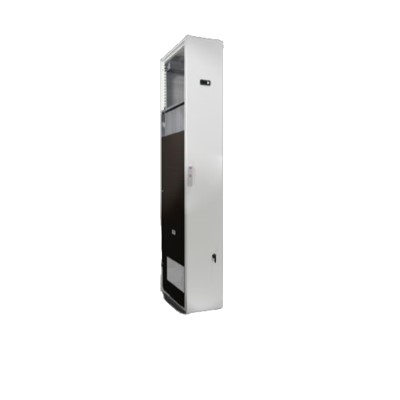

Liquid cooling cabinet (LCP) LCP industrial cabinet
Product Code :SK 3378.300
The air/water heat exchanger is located in the VX25 combined tank system. It is suitable for a VX25 cabinet with a depth of 600 mm or 800 mm and a height of 2,000 mm. It can exhaust 5 KW on each side or 10 KW on one side. The water supply can be flexibly connected above or below the equipment.
Type: Copper/brass water guide parts (Cu/CuZn)
Product Description:
The air/water heat exchanger is located in the VX25 combined tank system. It is suitable for a VX25 cabinet with a depth of 600 mm or 800 mm and a height of 2,000 mm. It can achieve 5 KW on each side or 10 KW on one side. Flexible water connection above or below the device.
Color: RAL 7035
Scope of Supply:
The instantly connected cooling unit is wired on the junction box
Front door with screen
Posterior wall
Multilingual data
Total cooling power: L 35 W 10: 9.5 kW at 2000 l/h
Rated operating voltage: 230 V, 1~, 50Hz/ 60Hz
Rated power Pel:
At 50 Hz: 350 W
At 60 Hz: 350 W
Maximum rated current:
At 50 Hz: 2.65A
At 60 Hz: 2.62 A
Allowable working pressure (p Max) : 1 ‐ 6 bar
Connection mode: terminal
Switch on duration: 100%
Cooling medium: Water (see our website for specifications)
Inlet temperature: 7 °C... 30 °C
Water connection port:
G ¾" IG
Temperature regulator: e Comfortable controller (factory setting +35 °C)
Operating temperature range: 5 °C... 70 °C
Note: It can be fixed by side screws to combine cabinets
Size:
Width: 300 mm
Height: 2,000 mm
Depth: 600 mm
Noise level: 60 dB(A)
Front fuse: Automatic fuse/fuse: 4 A
Adjustment range: 20 °C... 55 °C
Protection class IP, according to EN 60 529: IP 55
Packing unit: 1 piece
Weight/Packing: 106 kg
Tax code: 84158200
Custom Tariff Number China (deviation to global nr) : Differing customs tariff number for China: 84180000
EAN: 4028177958265
ETIM 7.0: EC002515
ECLASS 8.0:27180712
Product Description: SK liquid cooling cabinet, air/water heat exchanger located in VX25 combined cabinet system, 9.5kW, 230V, 1~, 50/60 Hz, water guide parts: copper/brass, W x H x D: 300 x 2000 x 600 mm
