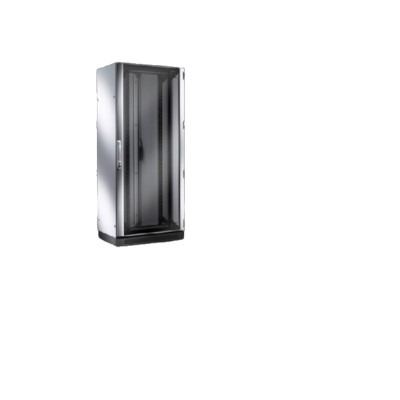

Network/Server cabinet TS IT with glass doors, prefabricated with 19" mounting frame
Product Code :DK 5507.151
TS IT, closed, used for the temperature control system directly related to the cabinet. Includes actual assembly and preassembly. The interior can be expanded to 19" with a 19" mounting frame for different sizes up to 1,500 kg.
Materials:
Steel plates
aluminum
Base corner connector: steel plate
Front/rear base guard plate: steel plate
Corner plates and parallel plates: plastic
Glass door: single safety glass, 3 mm
Surface:
Box frame: Dip primer
Internal expansion: Dip primer
Doors, roof and side panels: Dip primer, powder coating
Color:
Box frames and plates: RAL 7035
Internal installation, base: RAL 9005
Scope of Supply:
Housing frame TS 8 with door, top plate, base and side panel
Transparent aluminum door in front, 180° hinge
Front/rear lock: Comfortable handle for semi-round lock core and safety lock 3524E
Two 482.6 mm (19") mounting frames, front and back, with adjustable depth
Spacer gasket, height 50 mm, for raising the cover plate above the fan opening in the top plate for passive ventilation (included). For versions without openings, no need to use.
Connection fittings for potential balancing devices with central ground points, pre-installed
12 x 19 "fastener 1 U, contact type (included)
50 hex socket round head screws, conductive (included)
Bottom mounting
The front baseplate module is installed as a visual shield
Base system VX, 100 mm, vented
The base corner and the guard plate, side, are bolted
A base guard plate is provided at the front and rear panels and at the square and parallel panels
Side panel, single piece, lockable
4 horizontal legs M12 including base connection sleeve (included)
4 cable clamp rails (T-heads) for external mounting planes to match cabinet depth (included)
10 cabling rings, metal, 125 x 65 mm (included)
IPPC tray
The multi-section removable top plate is imported from the upper side cable in the depth direction with a fan mounting cover
Steel plate rear door, closed type, vertical segment, 180° hinge
Size:
Width: 800 mm
Height: 2,000 mm
Depth: 800 mm
Height unit: 42 U
Height, including base: 2,100 mm
Front/rear mounting free space to 19" plane: 147 mm / 105 mm
Layer spacing (in supply condition) : 545 mm
19" Angle rail: Mounting frame, 482.6 mm (19")
Carrying capacity: 15,000 N
Note: Depending on the installation method and location, the opening Angle of the door is different in the specific application
Basic material: steel plate
Packing unit: 1 piece
Weight/Packing: 163 kg
EAN: 4028177705791
ETIM 7.0: EC002499
ECLASS 8.0:27180207
Product Description: TS-IT cabinet 082108 RAL7035 42U glass door
