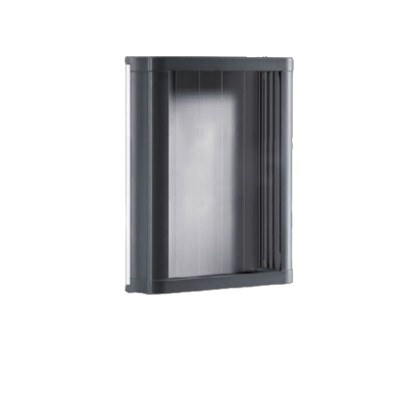

Tight-fitting operating board
Product Code :CP 6340.300
The elegant design structure of the operating box is derived from the stretched aluminum profile. Ideal for small control panels. Internal expansion options are varied
Type: Support arm connector 90 x 71 mm with steel CP 40
Product Description:
Small operating unit mounted on the front panel. The front panel is mounted from the rear and secured from the inside of the box with a spiral wrench. The material thickness of the front panel of the box itself can range from 2 mm to 6 mm. The rear wall can be hinged to the left or right. Top cover with opening and reinforcement for support arm system CP 40, steel.
Materials:
Top cover, bottom cover: zinc die casting
Rear wall: Aluminum
Side section: Aluminum extruded profile
Screw seal plate: plastic
Surface:
Top cover, bottom cover, side parts: powder-coated
Back wall: anodized by natural aluminum
Color: RAL 7024
Scope of Supply:
Top cover
Bottom shield
Posterior wall
Lateral part
Screw seal plate
Includes seal and screw wrench
Size:
Width: 315 mm
Height: 238 mm
Depth: 87 mm
Protection level IP, according to IEC 60 529 standard: IP 65
Protection category NEMA: NEMA 12
Suitable for front panel width: 252 mm
Suitable for front panel height: 200 mm
Basic material: Aluminum
Packing unit: 1 piece
Weight/Package: 3.4kg
Tax code: 94032080
EAN: 4028177382718
ETIM 7.0: EC002504
ECLASS 8.0:27180505
Product description: CP compact board
