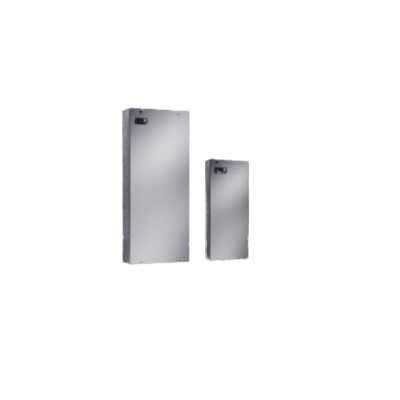

Wall mounted air/water heat exchanger
Product Code :SK 3374.110
Product Model :A-W HEX 10236BTU 115V 50-60HZ TYPE 12
Power levels from 375 to 5000 W. For harsh environments. User-friendly installation methods and flexible water pipe connection methods are available. Two mounting modes are available: external and fully embedded.
Type: Copper/brass water guide parts (Cu/CuZn)
Product Description:
For use in harsh environments and in ambient conditions with temperatures up to +70 °C. User-friendly installation methods and flexible water pipe connection methods are available. Two mounting modes are available: external and fully embedded.
Color: RAL 7035
Scope of Supply:
The cable is connected
Borehole template
Sealing and fixing material
Total cooling power: l 35 W 10:3 kW at 400 l/h
Rated operating voltage:
115 V, 1~, 50 Hz/60 Hz
110 V (DC)
Rated power Pel:
At 50 Hz: 169 W
At 60 Hz: 232 W
Maximum rated current:
At 50 Hz: 1.15A
At 60 Hz: 1.55A
Allowable working pressure (p Max) : 1 ‐ 10 bar
Switch on duration: 100%
Cooling medium: water
Inlet temperature: 1 °C... 30 °C
Water connection port:
½" hose connection
G ⅜" AG
Temperature regulator: Basic controller (factory setting +35 °C)
Operating temperature range: 1 °C... 70 °C
Description: An integrated check valve is available in the model with e comfort controller
Size:
Width: 400 mm
Height: 950 mm
Depth: 145 mm
Instructions on order number: For delivery time, please contact us
Adjustment range: 20 °C... 55 °C
Front fuse: Transformer protection switch: 3.5... 5 A
Protection class IP, according to EN 60 529: IP 55
Protection category NEMA: Protection Category NEMA:
UL Type 1
UL Type 3R
UL Type 12
Packing unit: 1 piece
Weight/Package: 20 kg
Tax number: 8415829990
EAN: 4028177496057
EAN11 (UC) : 85258
ETIM 7.0: EC002515
ECLASS 8.0:27180712
Description: SK Air/Water Heat exchanger, wall mounted, 3 kW, 115 V, 1~, 50/60 Hz, basic controller, water guide parts: copper/brass, W x H x D: 400 x 950 x 145 mm
