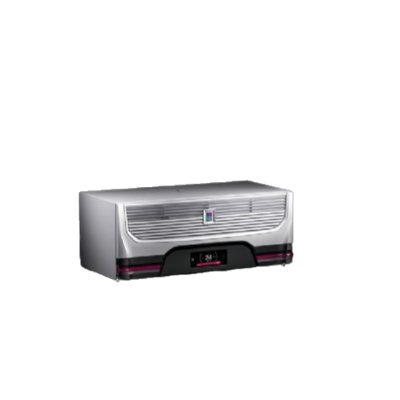

Blue e+ IT top-mounted cooling equipment
Product Code :SK 3312.800
The use of Blue e+ technology enables maximum adjustment to meet the requirements of energy-efficient cooling IT racks. When combined with the IoT communication module, it can communicate with different systems and enable monitoring management and energy management.
Product Description: Blue e+ technology is used for maximum adjustment to meet the requirements of energy-efficient cooling IT racks. When combined with the IoT communication module, it can communicate with different systems and enable monitoring management and energy management.
Your benefits:
Energy saving is achieved through speed control components and heat pipe technology
With its unique multi-voltage compatibility, it is used worldwide
Intuitive operation via touch screen and intelligent interface
Material: Steel plate
Color: RAL 7035
Scope of Supply:
Kit, consisting of the following individual components:
Top mounted cooling unit (3185.730)
IoT Communication Module (3124.300)
Temperature sensor (3124.400)
Connecting cable (7030.091)
Climbing cable mounting bracket (7111.350)
Effective cooling power L22 L30:1600 W
Rated operating voltage:
110 V - 240 V, 1~, 50 Hz/60 Hz
380 V - 480 V, 3~, 50 Hz/60 Hz
Rated power: 0.75kW
Connection mode: plug-in terminal board
Size:
Width: 700 mm
Height: 308 mm
Depth: 560 mm
Switch on duration: 100%
Temperature regulator: e+ controller
Agreement:
OPC-UA
SNMPv1
SNMPv2
SNMPv3
Modbus/TCP
TCP/IPv4
TCP/IPv6
Radius
Telnet
SSH
FTP
SFTP
HTTP
HTTPS
NTP
DHCP
DNS
SMTP
Syslog
LDAP
Operating temperature range: -20 °C... 55 °C
Allowable working pressure (p Max) : 24 bar
Storage temperature range: -40 °C... 70 °C
Adjustment range: 20 °C... 50 °C
Protection class IP, according to EN 60 529:
The collapsible filter achieves external circulation protection level IP 54
The folding filter achieves internal circulation protection level IP 54
Refrigerant/cooling medium:
Refrigerant: R134a
Quantity: 0.59 kg
Packing unit: 1 piece
Weight/Package: 38 kg
Tax code: 84158200
Custom Tariff Number China (deviation to global nr) : Differing customs tariff number for China: 84180000
EAN: 4028177942431
ETIM 7.0: EC000855
ECLASS 8.0:27180704
Product Description: SK IT roof-mounted cooling unit Blue e+, 1.6kW, for energy-efficient cooling of IT racks
