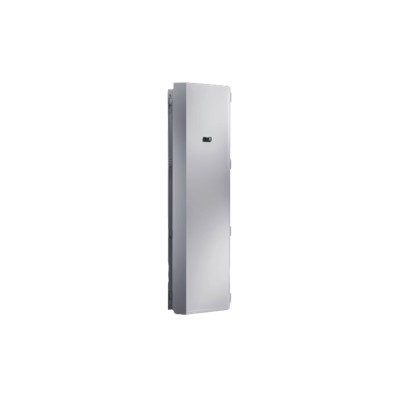

Air conditioning module design, cooling module Blue e total cooling power 1.50-2.50kW
Product Code :SK 3307.700
Air conditioning module for air conditioning door. Cooling power range is 1500 to 2500 W.
Product Description:
All cooling modules can be individually combined with each air conditioning door. The cooling module comes standard with an energy-efficient comfort controller for energy-efficient Blue e technology and an electronic condensate evaporator.
Your benefits: Connected to the IoT interface via the Blue e IoT adapter for cooling devices with up to 500 W power and E-Comfort controller
Material: Steel plate
Color: RAL 7035
Scope of Supply:
Condenser with hydrophobic RiNano coating
The cooling module is ready for installation inside the air conditioner door
Integrated electric condensate evaporator
wired
Maximum rated current:
At 50 Hz: 6 A
At 60 Hz: 6.1A
Starting current (Max.) :
At 50 Hz: 22 A
At 60 Hz: 24 A
Rated power Pel 50/60 Hz L35 L35:0.85kW / 1.05kW
Rated power Pel 50/60 Hz L35 L50:1 kW/1.15 kW
Temperature regulator: e Comfortable controller (factory setting +35 °C)
At 60 Hz: 6.1A
Note: A base of 100 or 200 mm high should be selected for efficient operation
Air flow (free air supply) :
External loop: 1,100 m³/h
Internal loop: 600 m³/h
Refrigerant/cooling medium:
Refrigerant: R134a
Quantity: 0.7kg
Global Warming Potential (GWP): 1,430
CO₂ equivalent (CO₂e): 1 t
Energy efficiency ratio (EER) is 50/60 Hz L35 L35:
Cooling capacity L35 L35 (EER) 50 Hz: 1.76
Cooling capacity L35 L35 (EER) 60 Hz: 1.48
Operating temperature range: 10 °C... 55 °C
Allowable working pressure (p Max) : 28 bar
Front fuse: Automatic fuse/fuse: 16 A
Adjustment range: 20 °C... 55 °C
Total cooling power, according to DIN EN 14511:
Cooling power L35 L35/50 Hz: 1.5kW
Cooling power L35 L35/60 Hz: 1.55kW
Cooling power L35 L50/50 Hz: 0.85kW
Cooling power L35 L50/60 Hz: 0.9kW
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Packing unit: 1 piece
Weight/Packing: 68 kg
Description: Includes molding door weight
Tax code: 84158200
Custom Tariff Number China (deviation to global nr) : Differing customs tariff number for China: 84180000
EAN: 4028177559448
ETIM 7.0: EC002510
ECLASS 8.0:27180702
Product description: With comfortable controller
